Product Model
dsbc-32-100-ppsa-n3
Selling Points

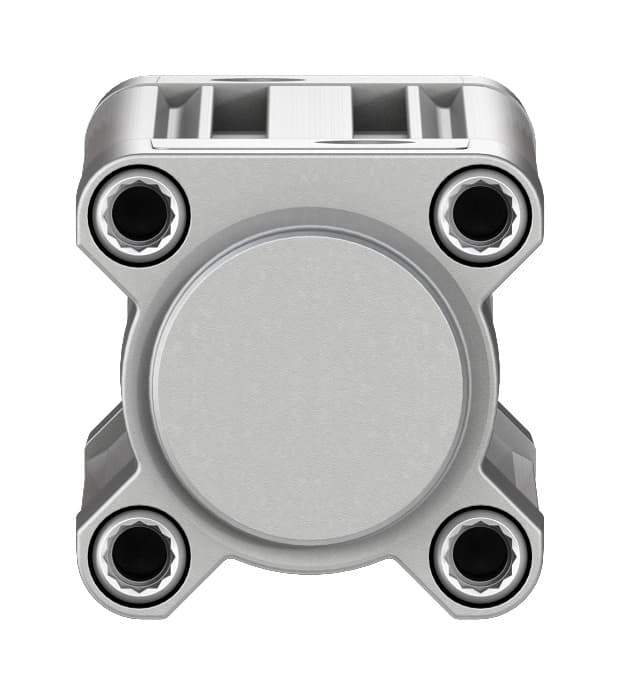

- 1The Festo DSBC-32-100-PPSA-N3 is a standards-based pneumatic cylinder that conforms to ISO 15552, ensuring compatibility and reliability in various industrial applications.
- 2This cylinder features a self-adjusting pneumatic end-position cushioning, which provides a smooth and controlled motion, reducing wear and tear on the components.
- 3With a piston diameter of 32 mm and a stroke of 100 mm, the DSBC-32-100-PPSA-N3 offers a versatile range of motion suitable for various handling tasks.
- 4The cylinder operates within a wide temperature range of -20 °C to 80 °C, making it suitable for use in diverse industrial environments.
- 5The DSBC-32-100-PPSA-N3 is designed with corrosion resistance class CRC 2, providing moderate corrosion protection suitable for indoor applications with minimal exposure to corrosive conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 100mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 110g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 465g |
Additional weight per 10?mm stroke | 27g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1376471 |
Specifications may be subject to change without notice
