Product Model

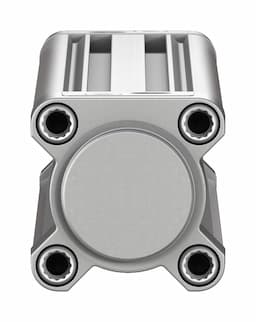

dsbc-32-320-ppva-n3
Selling Points
- 1High-Performance Pneumatic Cylinder: The DSBC-32-320-PPVA-N3 is a high-performance pneumatic cylinder designed for demanding automation applications, offering a stroke length of 320 mm and a piston diameter of 32 mm.
- 2Adjustable Pneumatic Cushioning: Equipped with adjustable pneumatic cushioning at both ends, this cylinder ensures smooth operation and reduces wear and tear, extending its lifespan.
- 3Compliant with ISO 15552: The DSBC-32-320-PPVA-N3 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of automation systems and components.
- 4Versatile Operating Pressure: This cylinder operates within a pressure range of 0.6 to 12 bar, making it suitable for various industrial applications requiring different levels of force.
- 5Robust Construction: Built with high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
Cushioning length | 17mm | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass at 0?mm stroke | 110g |
Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 465g |
Additional weight per 10?mm stroke | 27g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1376431 |
Specifications may be subject to change without notice
