Product Model

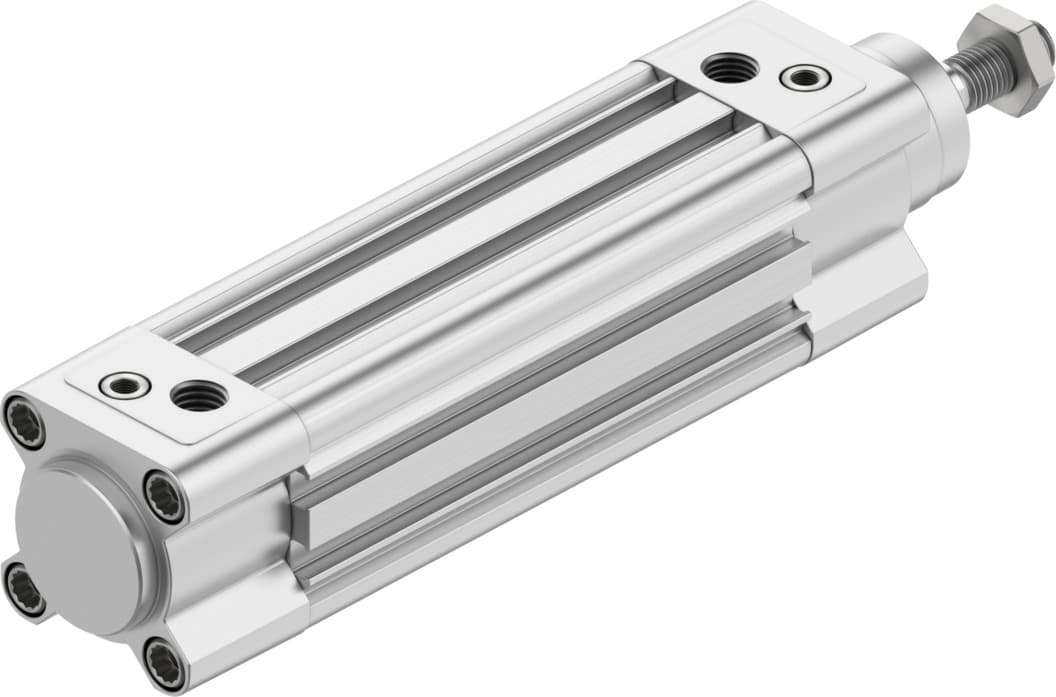

dsbc-32-80-d3-ppva-n3
Selling Points
- 1The Festo DSBC-32-80-PPVA-N3 cylinder offers adjustable cushioning at both ends, ensuring smooth operation and minimizing wear and tear. Its high precision design makes it suitable for demanding industrial applications.
- 2This cylinder conforms to the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems. This standardization simplifies integration and maintenance, making it a reliable choice for various industrial setups.
- 3The DSBC-32-80-PPVA-N3 operates within a pressure range of 0.06 MPa to 1.2 MPa (0.6 bar to 12 bar), providing flexibility in different operating conditions. This range ensures the cylinder can handle various load requirements effectively.
- 4Made from high-quality materials, including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder offers robust construction and durability. The die-cast aluminum cover and TPE-U(PU) seals enhance its corrosion resistance and longevity.
- 5The cylinder can be mounted via a female thread or with accessories, providing flexibility in installation. Position detection is possible via proximity switches, ensuring accurate control and monitoring of the cylinder's position.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 32 mm |
Piston rod thread | M10x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3656518 |
Specifications may be subject to change without notice
