Product Model

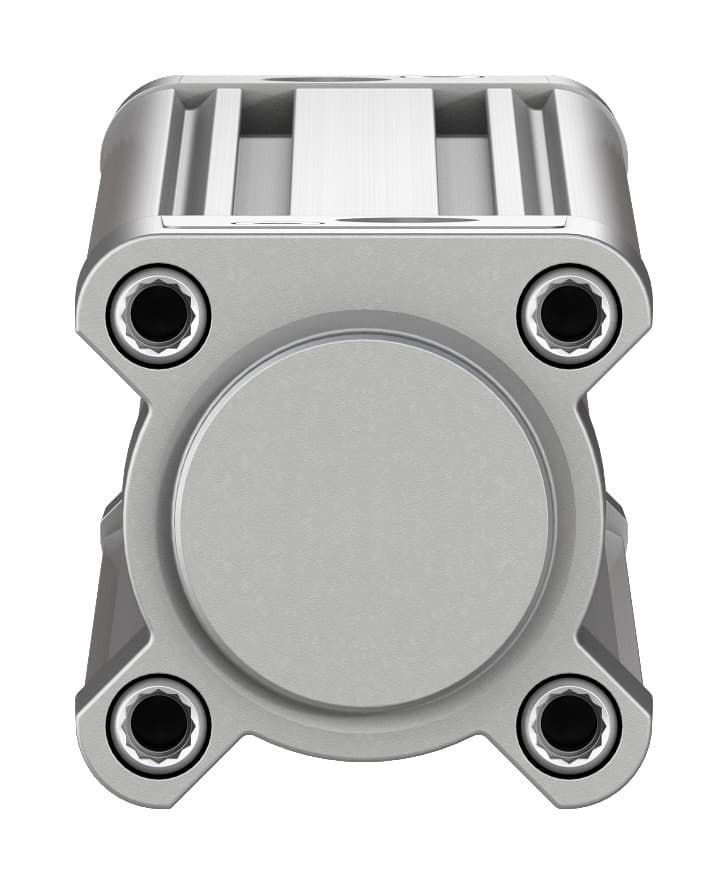

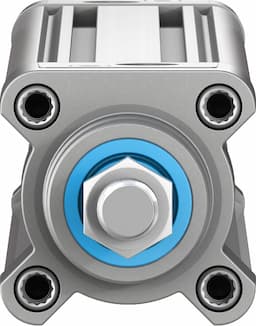

dsbc-40-300-ppva-n3
Selling Points
- 1The DSBC-40-300-PPVA-N3 is built with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
- 2This pneumatic cylinder features adjustable cushioning at both ends, providing customizable damping to suit various application requirements.
- 3Designed for double-acting operation, the DSBC-40-300-PPVA-N3 can move in both directions, offering flexibility in automation systems.
- 4Conforms to ISO 15552 standards, ensuring compatibility with a wide range of industrial automation systems.
- 5Can be mounted with internal threads or accessories, providing flexibility in installation and integration into various automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 300mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 2123227 |
Specifications may be subject to change without notice
