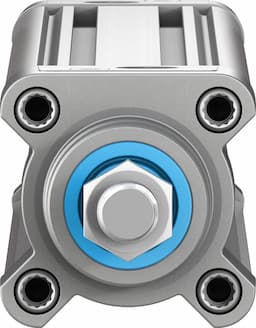

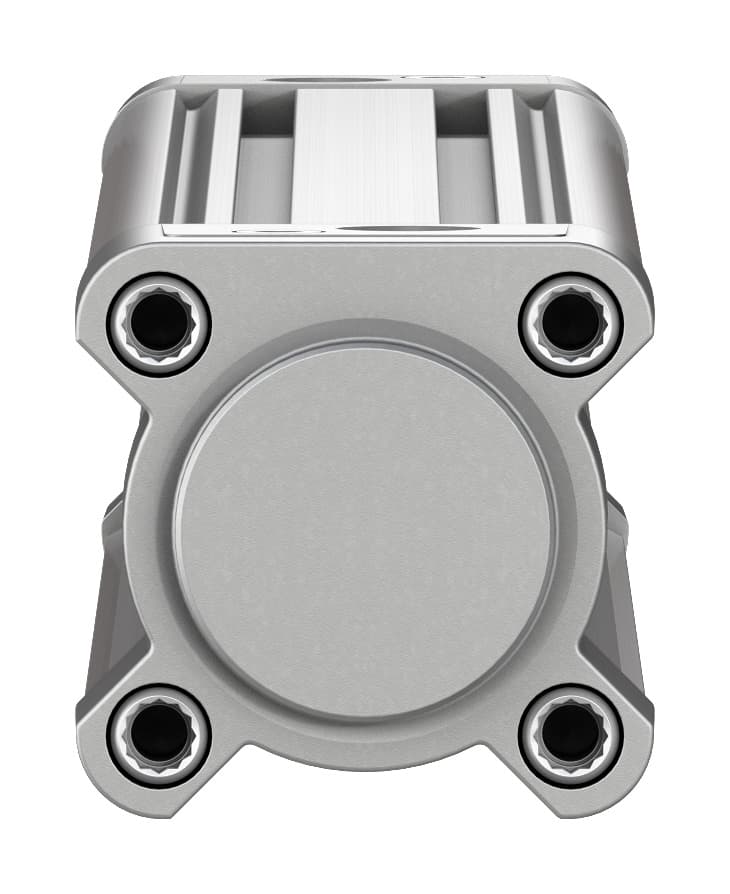

Product Model
dsbc-40-320-ppva-n3
Selling Points
- 1High-Performance Automation: The Festo DSBC-40-320-PPVA-N3 pneumatic cylinder is engineered for precise and efficient automation, ensuring reliable performance in various industrial applications.
- 2Adjustable Pneumatic Cushioning: Equipped with adjustable pneumatic cushioning at both ends, this cylinder provides optimal control over movement and reduces wear and tear.
- 3Compliant with ISO 15552: Conforming to the international standard ISO 15552, this cylinder ensures compatibility and reliability in a wide range of industrial settings.
- 4Versatile Operating Pressure: Operating pressure ranges from 0.6 to 12 bar, making it suitable for various applications requiring different levels of force and speed.
- 5Durable Construction: Built with a moderate corrosion resistance class (CRC 2), this cylinder is designed to withstand the rigors of industrial environments while maintaining its performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1376665 |
Specifications may be subject to change without notice
