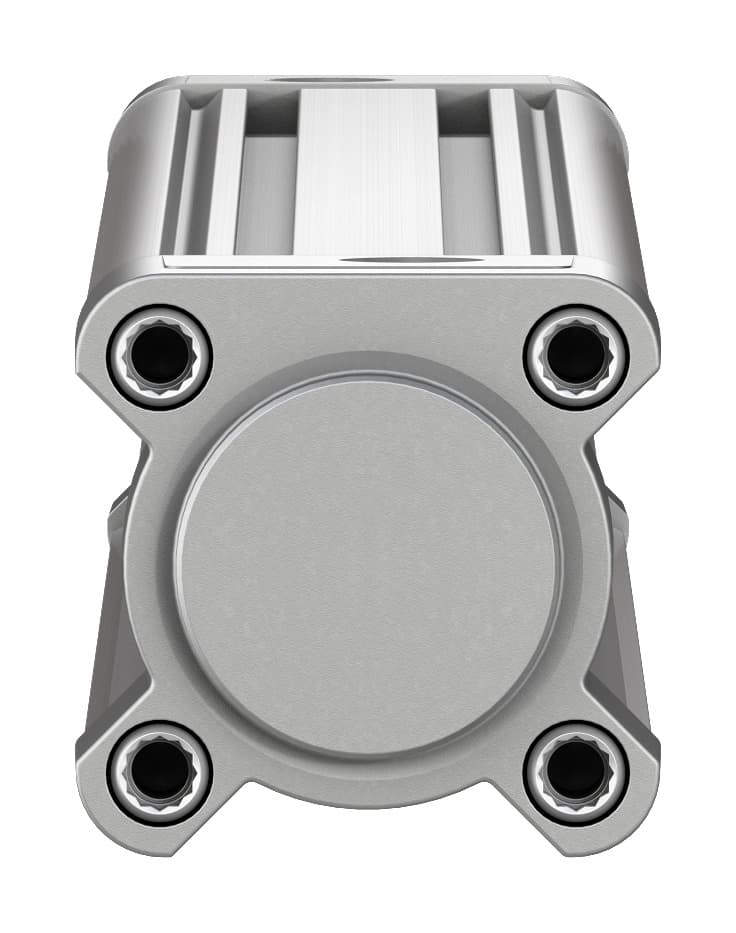

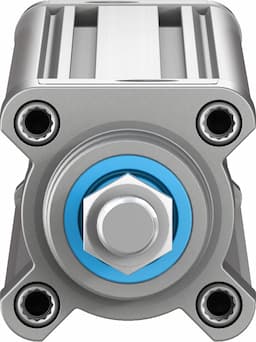

Product Model
dsbc-40-400-ppsa-n3
Selling Points
- 1High-Performance Actuator: The Festo DSBC-40-400-PPSA-N3 is a double-acting pneumatic cylinder designed for high-performance applications, offering a stroke length of 400 mm and a piston diameter of 40 mm.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning, this cylinder provides ideal cushion performance without the need for manual adjustments, ensuring smooth operation even with changing loads and speeds.
- 3ISO 15552 Compliance: The DSBC series conforms to the ISO 15552 standard, allowing for universal mounting dimensions and interchangeability with other hydraulic and pneumatic cylinders, enhancing flexibility in various applications.
- 4Robust Construction: Featuring a high-alloy steel piston rod, this cylinder offers excellent running performance, low overall weight, and a long service life, making it a reliable choice for demanding industrial tasks.
- 5Contactless Position Detection: With magnetic piston rods and slots for flush mounting proximity sensors, the DSBC-40-400-PPSA-N3 enables contactless position detection via proximity sensors, simplifying control and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 400mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1376913 |
Specifications may be subject to change without notice
