Product Model

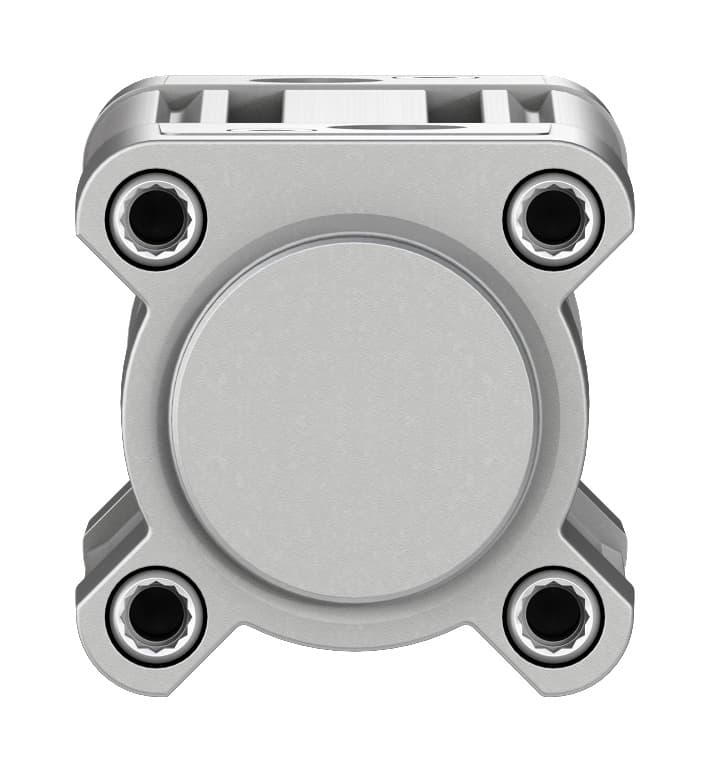

dsbc-40-60-ppva-n3
Selling Points
- 1The DSBC-40-60-PPVA-N3 pneumatic cylinder offers adjustable cushioning at both ends, ensuring smooth operation and reducing wear and tear.
- 2With a stroke length of 60 mm, this cylinder is designed for applications requiring significant movement, making it versatile for various industrial tasks.
- 3Built with high-alloy steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, this cylinder ensures durability and reliability.
- 4Conforms to ISO 15552 standards, ensuring compatibility with a wide range of industrial systems and applications.
- 5Can be mounted via female thread or with accessories, offering flexibility in installation and integration into different automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 60mm | Piston diameter | 40 mm |
Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 2123224 |
Specifications may be subject to change without notice
