Product Model

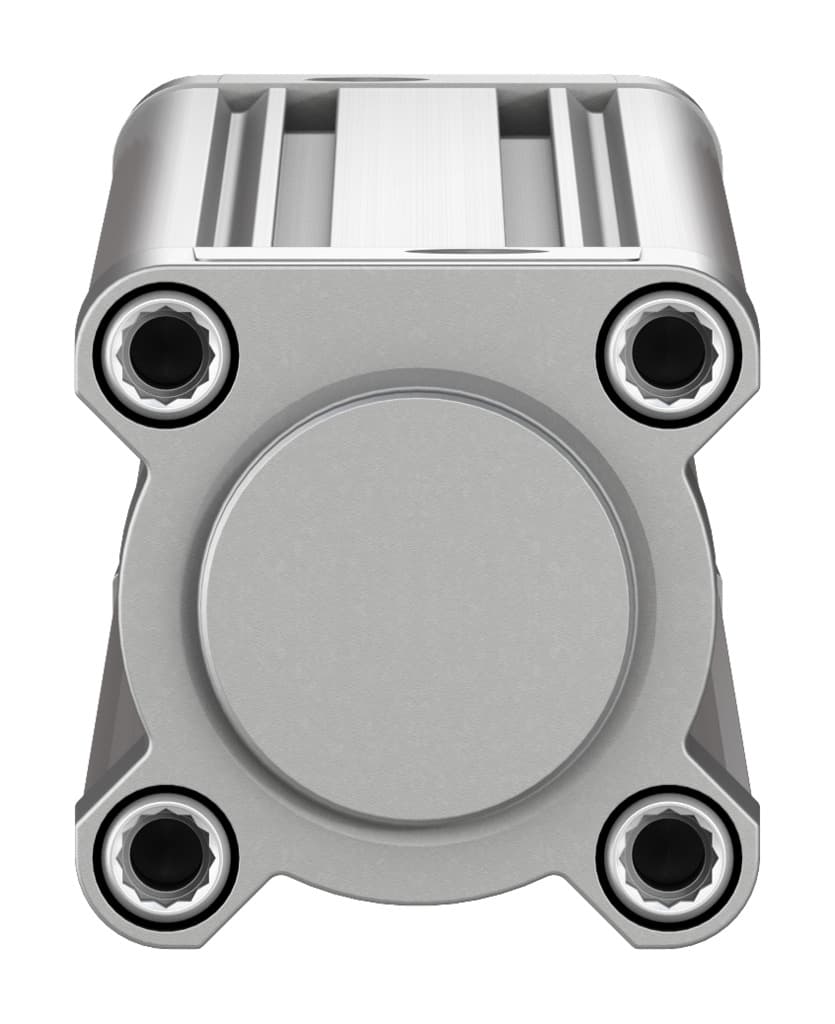

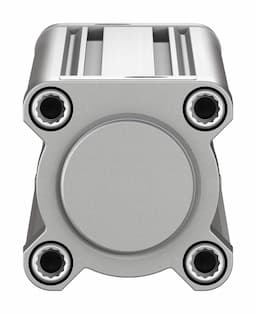

dsbc-50-400-ppva-n3
Selling Points
- 1The Festo DSBC-50-400-PPVA-N3 ISO cylinder offers a 400mm stroke and a 50mm piston diameter, making it suitable for a wide range of industrial applications.
- 2This cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth operation and extended lifespan.
- 3Conforming to the ISO 15552 standard, the DSBC-50-400-PPVA-N3 provides standardized dimensions and mounting interfaces for easy integration.
- 4With a piston rod thread of M16x1.5, this cylinder ensures secure and reliable operation in various environments.
- 5The DSBC-50-400-PPVA-N3 is designed for double-acting mode of operation, utilizing compressed air to ISO 8573-1:2010 standards, making it efficient and reliable in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 400mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
Cushioning length | 22mm | Theoretical force at 6 bar, retracting | 990N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass at 0?mm stroke | 365g |
Additional moving mass per 10?mm stroke | 25g | Basic weight with 0?mm stroke | 1190g |
Additional weight per 10?mm stroke | 56g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1366958 |
Specifications may be subject to change without notice
