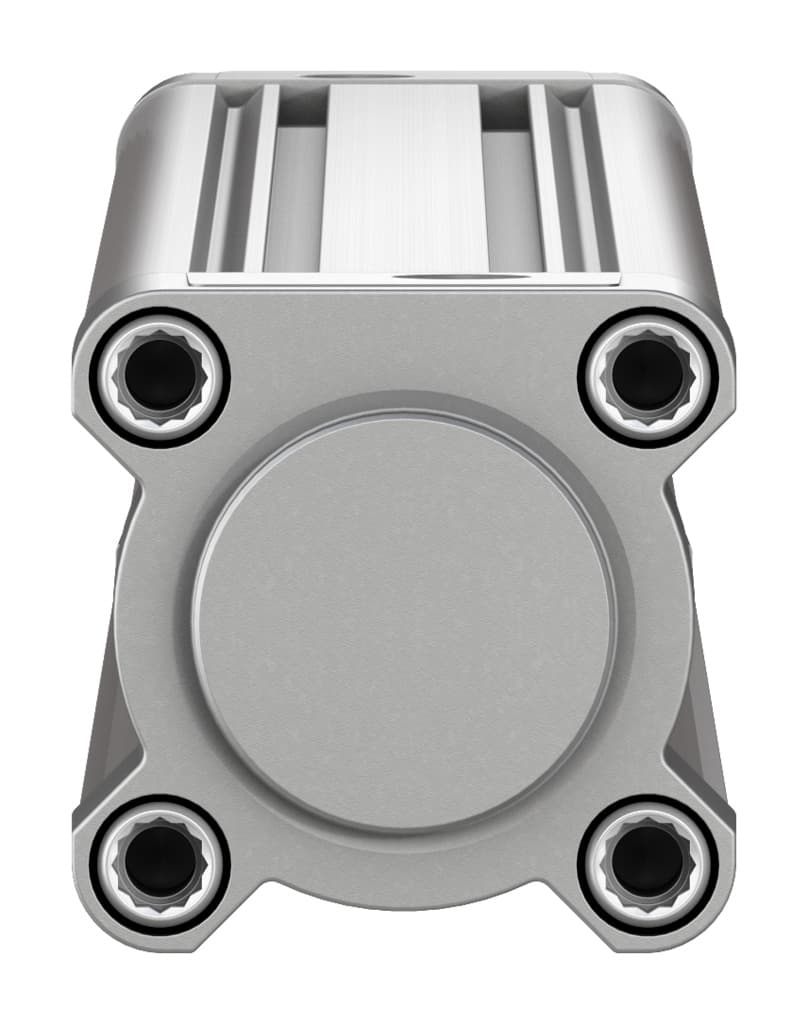

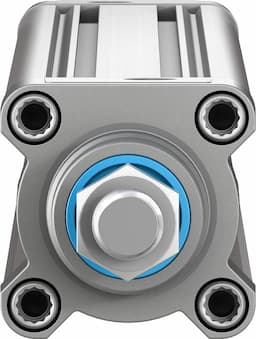

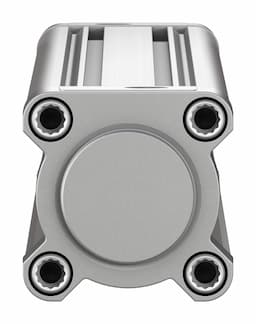

Product Model
dsbc-50-500-ppsa-n3
Selling Points
- 1The DSBC-50-500-PPSA-N3 features a stroke length of 500 mm, ensuring precise and reliable operation in various industrial applications.
- 2Made from high-alloy steel and coated with TPE-U(PU) for piston seals, this cylinder offers robust construction and moderate corrosion resistance.
- 3Equipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth operation and reduces wear and tear.
- 4The DSBC-50-500-PPSA-N3 operates within a wide pressure range of 0.04 MPa to 1.2 MPa, making it versatile for various industrial settings.
- 5Conforming to ISO 15552 and ISO 14644-1, this cylinder meets stringent industry standards for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 500mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
Cushioning length | 22mm | Theoretical force at 6 bar, retracting | 990N |
Theoretical force at 6 bar, advancing | 1178N | Moving mass at 0?mm stroke | 365g |
Additional moving mass per 10?mm stroke | 25g | Basic weight with 0?mm stroke | 1190g |
Additional weight per 10?mm stroke | 56g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | POM |
Flange screws material | Steel, galvanized | Manufacturer ID | 1376314 |
Specifications may be subject to change without notice
