Product Model

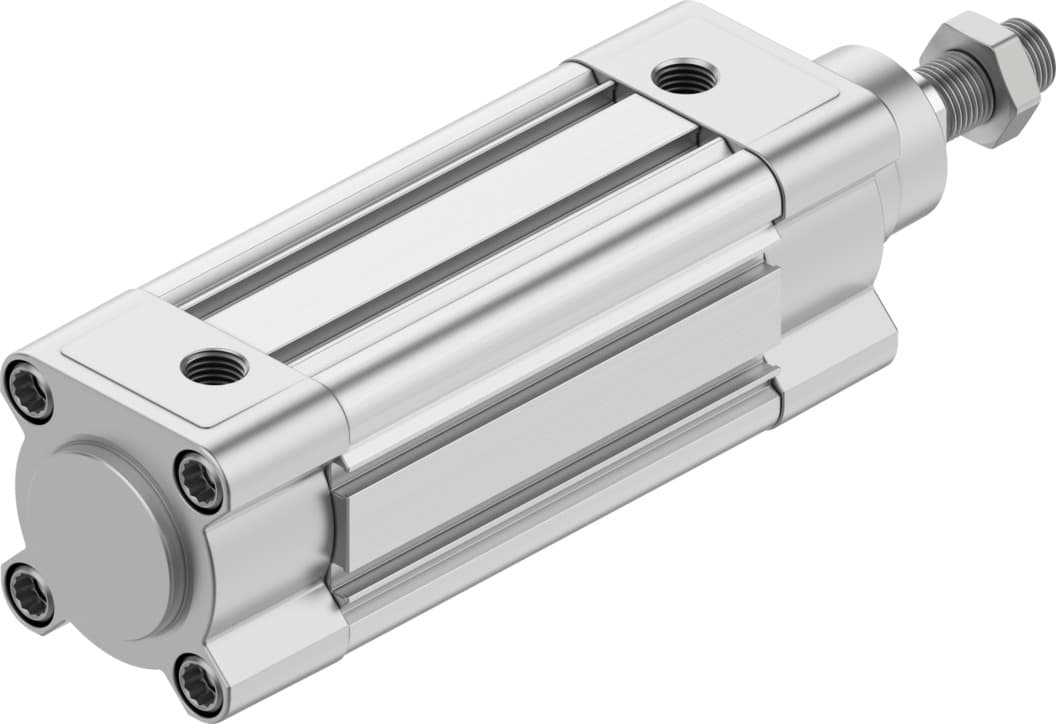

dsbc-50-80-d3-ppsa-n3
Selling Points
- 1The Festo DSBC-50-80-D3-PPSA-N3 is built with robust materials, ensuring durability and long-lasting performance in demanding automation environments.
- 2This cylinder operates in both directions, providing flexibility and versatility in various industrial applications, such as manufacturing and assembly.
- 3Compliant with ISO 15552 standards, the DSBC-50-80-D3-PPSA-N3 features standardized dimensions for easy integration into existing systems, reducing complexity and increasing efficiency.
- 4Equipped with a G1/4 pneumatic connection, this cylinder offers a reliable and efficient way to manage compressed air, ensuring smooth operation and minimal downtime.
- 5The D3 feature in the modular product system enhances the cylinder's dynamic response, making it suitable for very fast movements, especially at low operating pressures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 50 mm |
Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 990N | Theoretical force at 6 bar, advancing | 1178N |
Moving mass at 0?mm stroke | 365g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1216g | Additional weight per 10?mm stroke | 78g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3659498 |
Specifications may be subject to change without notice
