Product Model
dsbc-63-125-d3-ppva-n3
Selling Points

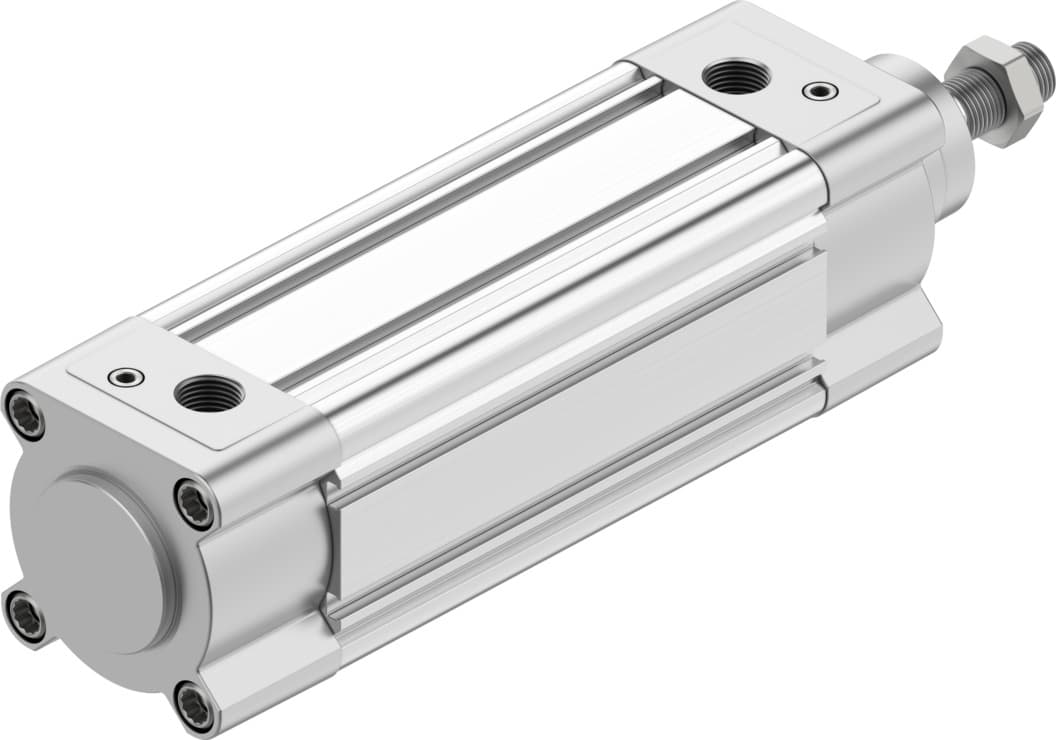

- 1The Festo DSBC-63-125-D3-PPVA-N3 is a high-quality, ISO-standard pneumatic cylinder designed for precise and reliable operation. It features a stroke of 125 mm and a piston diameter of 63 mm, making it ideal for various industrial applications.
- 2This cylinder boasts adjustable pneumatic cushioning at both ends, ensuring smooth and controlled movements. The cushioning length is 22 mm, providing optimal performance and durability.
- 3The DSBC-63-125-D3-PPVA-N3 is versatile in its mounting options, allowing for any assembly position. It conforms to the ISO 15552 standard, ensuring compatibility with a wide range of systems.
- 4With a piston rod thread of M16x1.5 and an operating pressure range of 0.4 to 12 bar, this cylinder is suitable for double-acting operations. It can be used with compressed air as per ISO 8573-1:2010 [7:4:4].
- 5The Festo DSBC-63-125-D3-PPVA-N3 is designed for use with proximity sensors, enhancing position detection capabilities. It also supports operation with oil lubrication, ensuring extended lifespan and optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1774g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 3657868 |
