Product Model

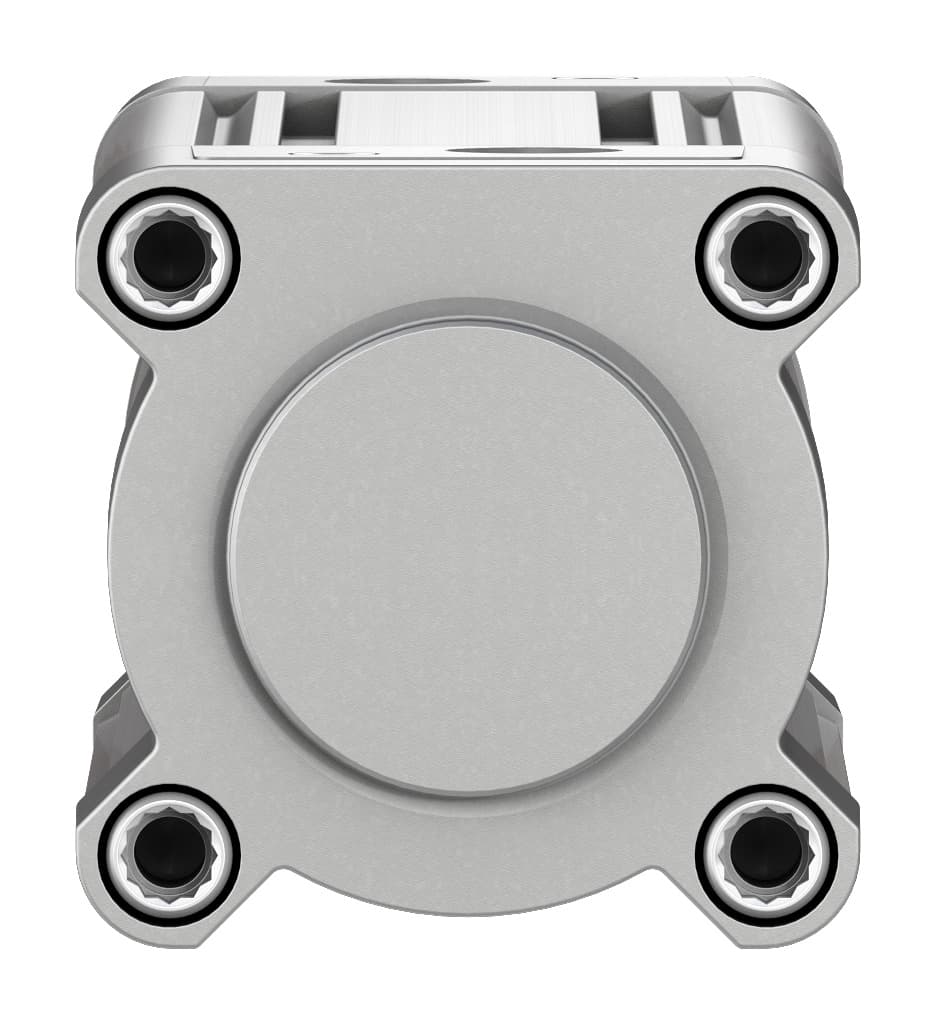

dsbc-63-125-ppva-n3
Selling Points
- 1The Festo DSBC-63-125-PPVA-N3 pneumatic cylinder offers a stroke length of 125 mm and a piston diameter of 63 mm, ensuring precise and reliable operation in various automation tasks.
- 2This cylinder features adjustable pneumatic cushioning at both ends, providing customizable damping to suit different application requirements and ensuring smooth motion control.
- 3Compliant with the ISO 15552 standard, the DSBC-63-125-PPVA-N3 ensures compatibility with a wide range of industrial automation systems, making it a versatile choice for various applications.
- 4With a piston rod thread of M16x1.5 and a male thread at the piston-rod end, this cylinder offers easy integration with other Festo components and accessories, enhancing overall system efficiency.
- 5Designed for double-acting operation with compressed air in accordance with ISO 8573-1:2010 [7:4:4], the DSBC-63-125-PPVA-N3 provides reliable performance under various operating pressures from 0.4 to 12 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 125mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1740g | Additional weight per 10?mm stroke | 62g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383583 |
Specifications may be subject to change without notice
