Product Model

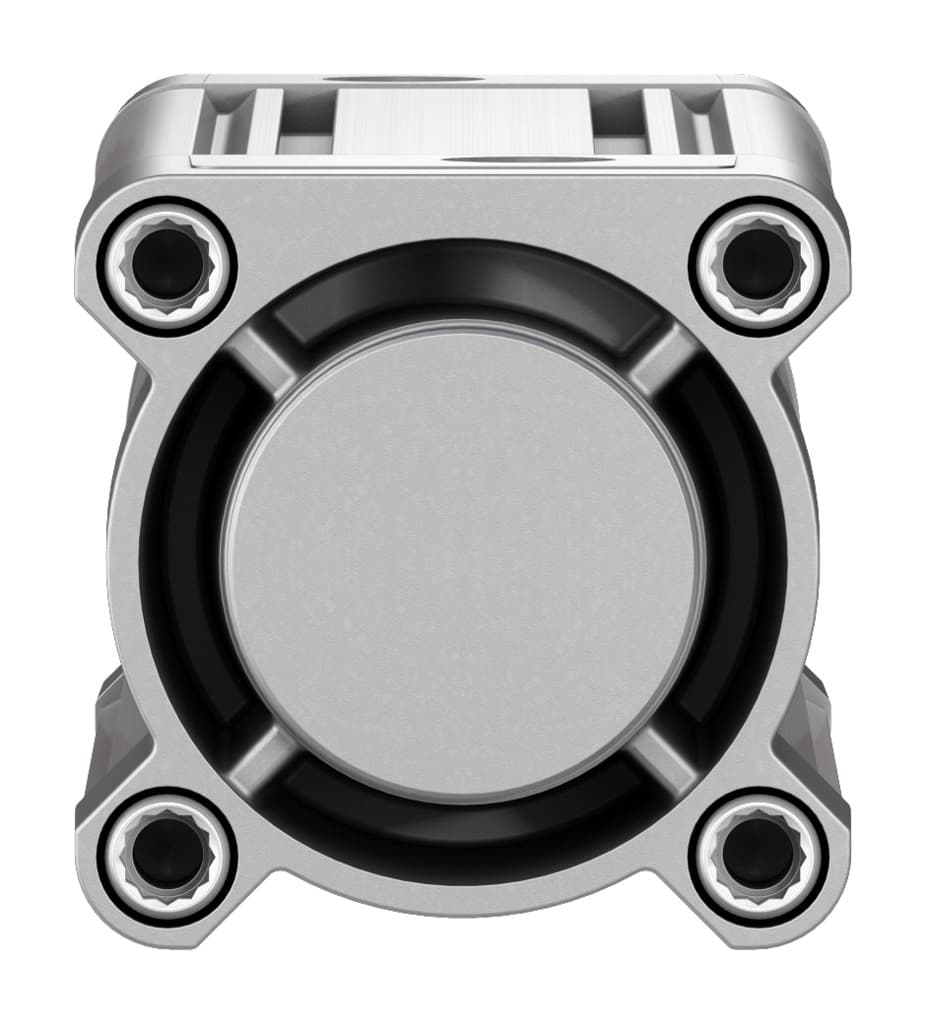

dsbc-63-160-ppsa-n3
Selling Points
- 1The DSBC-63-160-PPSA-N3 pneumatic cylinder is designed with high-quality materials, ensuring long-lasting performance and precise control in various industrial applications.
- 2Equipped with PPS self-adjusting pneumatic end-position cushioning, this cylinder provides smooth operation and reduces wear and tear, extending its lifespan.
- 3The cylinder can be mounted in any position, offering flexibility in system design and installation, making it suitable for a wide range of industrial setups.
- 4Conforms to ISO 15552 standards, ensuring compatibility with various industrial systems and components, and meeting the highest quality and safety standards.
- 5Designed for double-acting operation with compressed air, this cylinder operates efficiently within a pressure range of 0.4 to 12 bar, making it suitable for demanding industrial tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 160mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1740g | Additional weight per 10?mm stroke | 62g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383638 |
