Product Model
dsbc-63-250-ppsa-n3
Selling Points

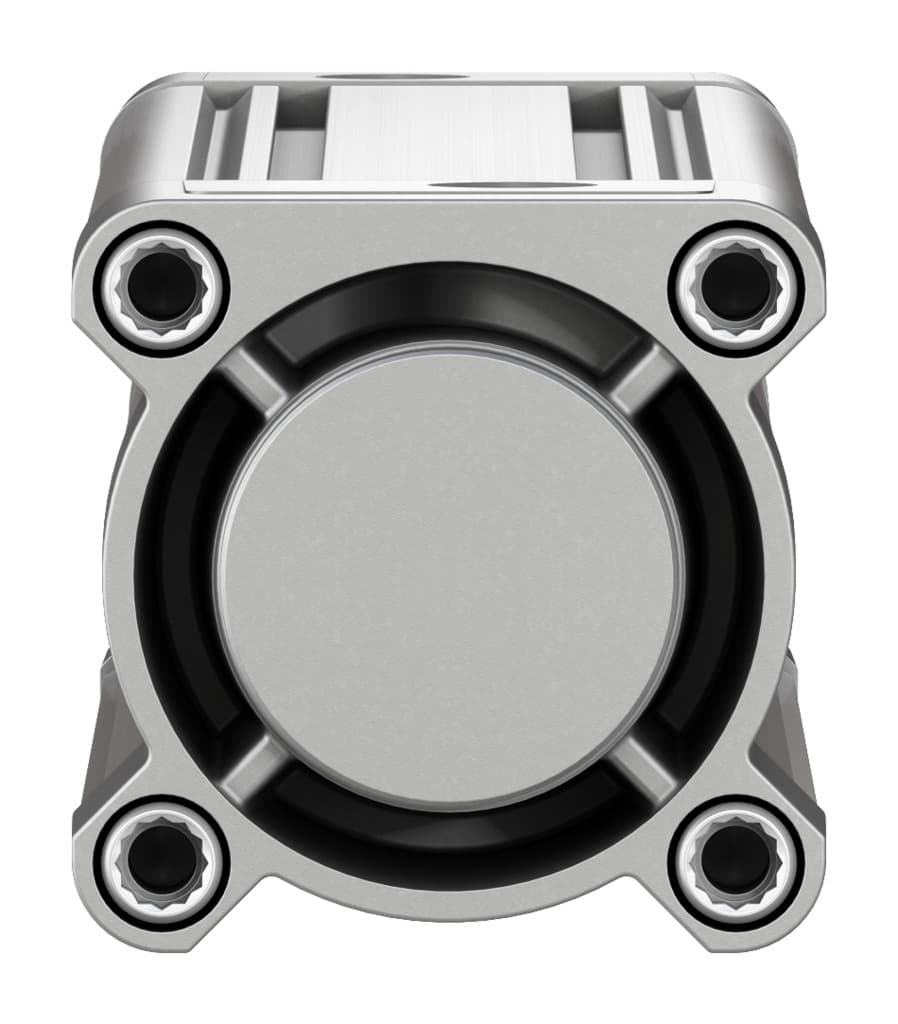

- 1High-Performance Pneumatic Cylinder: The Festo DSBC-63-250-PPSA-N3 is designed for high-performance applications, offering a 250mm stroke and 63mm piston diameter for precise control and movement.
- 2Self-Adjusting Pneumatic Cushioning: Equipped with self-adjusting pneumatic end-position cushioning, this cylinder ensures smooth operation and reduces wear on the actuator barrel.
- 3High-Alloy Steel Piston Rod: The high-alloy steel piston rod provides excellent running performance, low overall weight, and a long service life, making it ideal for demanding industrial environments.
- 4Double Acting and Versatile Mounting: This double-acting pneumatic cylinder can be mounted in any position due to its compliance with ISO 15552 standards, offering flexibility in various application setups.
- 5Advanced Position Detection: Featuring magnetic piston rods for contactless position detection via proximity sensors, the DSBC-63-250-PPSA-N3 enhances precision and reliability in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 250mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1740g | Additional weight per 10?mm stroke | 62g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383640 |
