Product Model
dsbc-63-400-d3-ppsa-n3
Selling Points

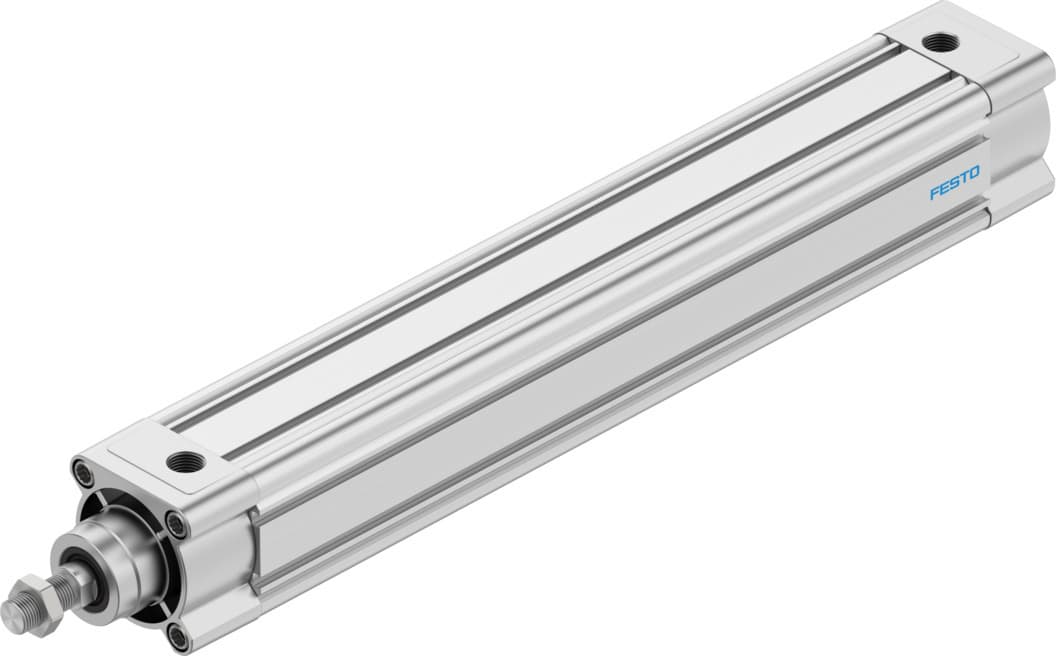

- 1The Festo DSBC-63-400-D3-PPSA-N3 is a double-acting cylinder that conforms to ISO 15552, ensuring compatibility and reliability in various industrial applications.
- 2This cylinder features a 63mm piston diameter and a 400mm stroke, making it suitable for a wide range of tasks requiring precise movement and control.
- 3Equipped with self-adjusting pneumatic end-position cushioning, the DSBC-63-400-D3-PPSA-N3 provides smooth operation and reduces wear on the cylinder, extending its lifespan.
- 4The cylinder operates within a pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar), allowing for flexible integration into different pneumatic systems.
- 5Made from high-quality materials including die-cast aluminum, high-alloy steel, and TPE-U(PU) for seals, the DSBC-63-400-D3-PPSA-N3 ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 400mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1774g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165592 |
Specifications may be subject to change without notice
