Product Model

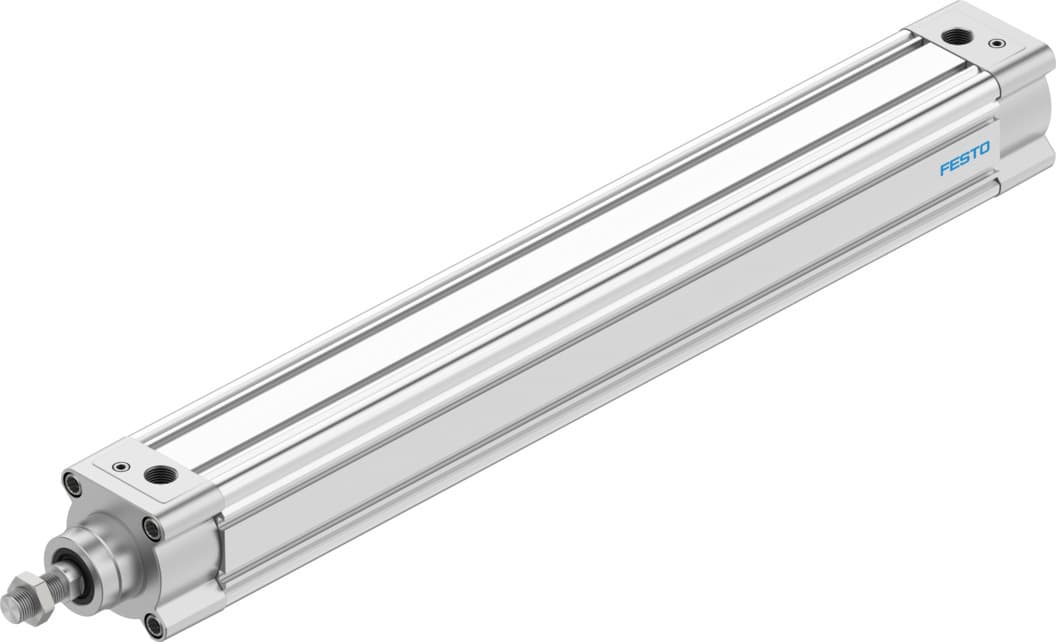

dsbc-63-500-d3-ppva-n3
Selling Points
- 1The Festo DSBC-63-500-D3-PPVA-N3 pneumatic cylinder offers a 500 mm stroke length, making it suitable for a wide range of industrial applications.
- 2With a piston diameter of 63 mm and an M16x1.5 piston rod thread, this cylinder provides robust and reliable performance.
- 3The cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth operation and minimizing wear and tear.
- 4Conforming to the ISO 15552 standard, this cylinder ensures compatibility with various industrial systems and components.
- 5Operating within a pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar), this cylinder is versatile and adaptable to different operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 500mm | Piston diameter | 63 mm |
Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
Basic weight with 0?mm stroke | 1774g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165593 |
Specifications may be subject to change without notice
