Product Model

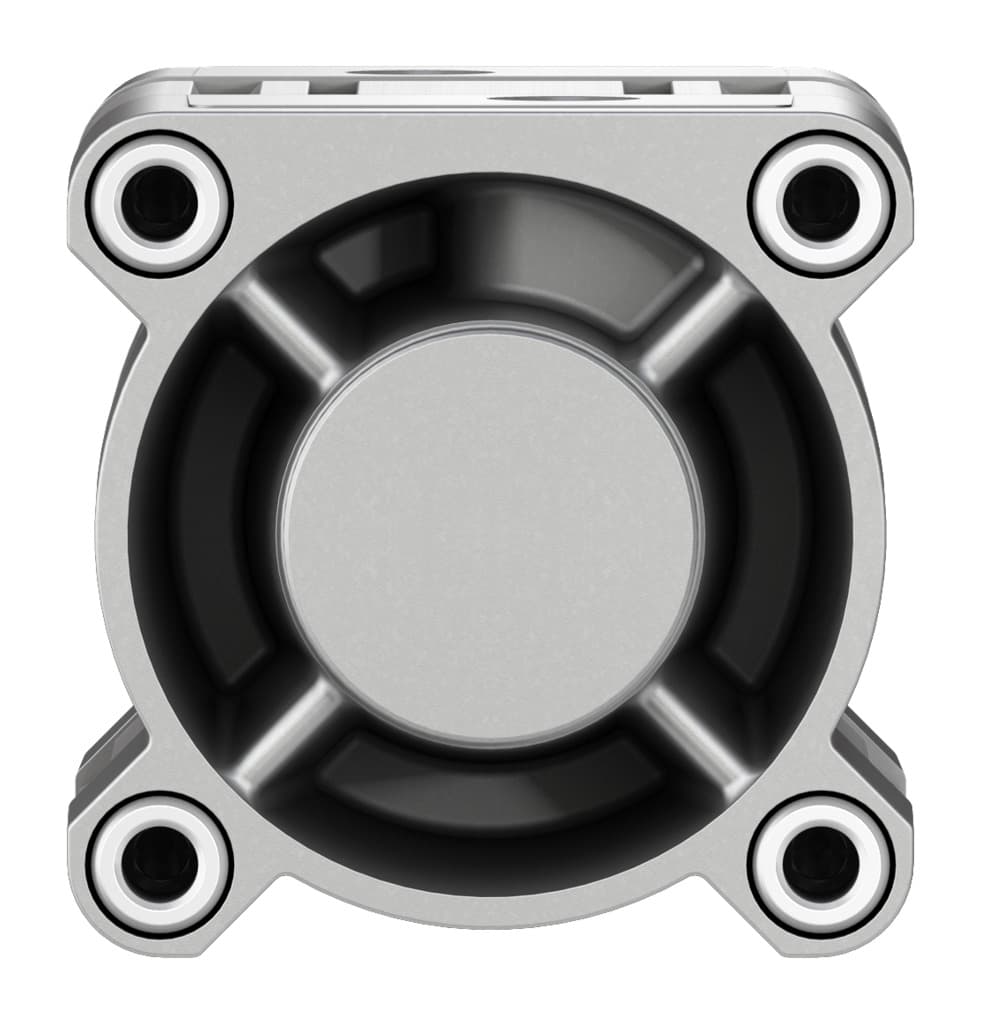

dsbc-80-20-ppsa-n3
Selling Points
- 1High-Performance Operation: The Festo DSBC-80-20-PPSA-N3 operates at double-acting, providing consistent force in both retracting and advancing strokes, ensuring efficient and reliable performance in industrial applications.
- 2Standardized Dimensions: This cylinder adheres to ISO 15552 standards, ensuring compatibility and ease of integration into existing systems. Its standardized dimensions make it a versatile choice for various automation needs.
- 3Robust Construction: Built with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, the DSBC-80-20-PPSA-N3 offers robust construction and durability, suitable for demanding industrial environments.
- 4Corrosion Resistance: With a corrosion resistance class of 2, this cylinder provides moderate corrosion protection, making it suitable for applications where exposure to environmental factors is a concern.
- 5Easy Integration: The Festo DSBC-80-20-PPSA-N3 features a G3/8 pneumatic connection and a M20x1.5 piston rod thread, facilitating easy integration with other Festo components and ensuring smooth system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2660g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 2126636 |
Specifications may be subject to change without notice
