Product Model

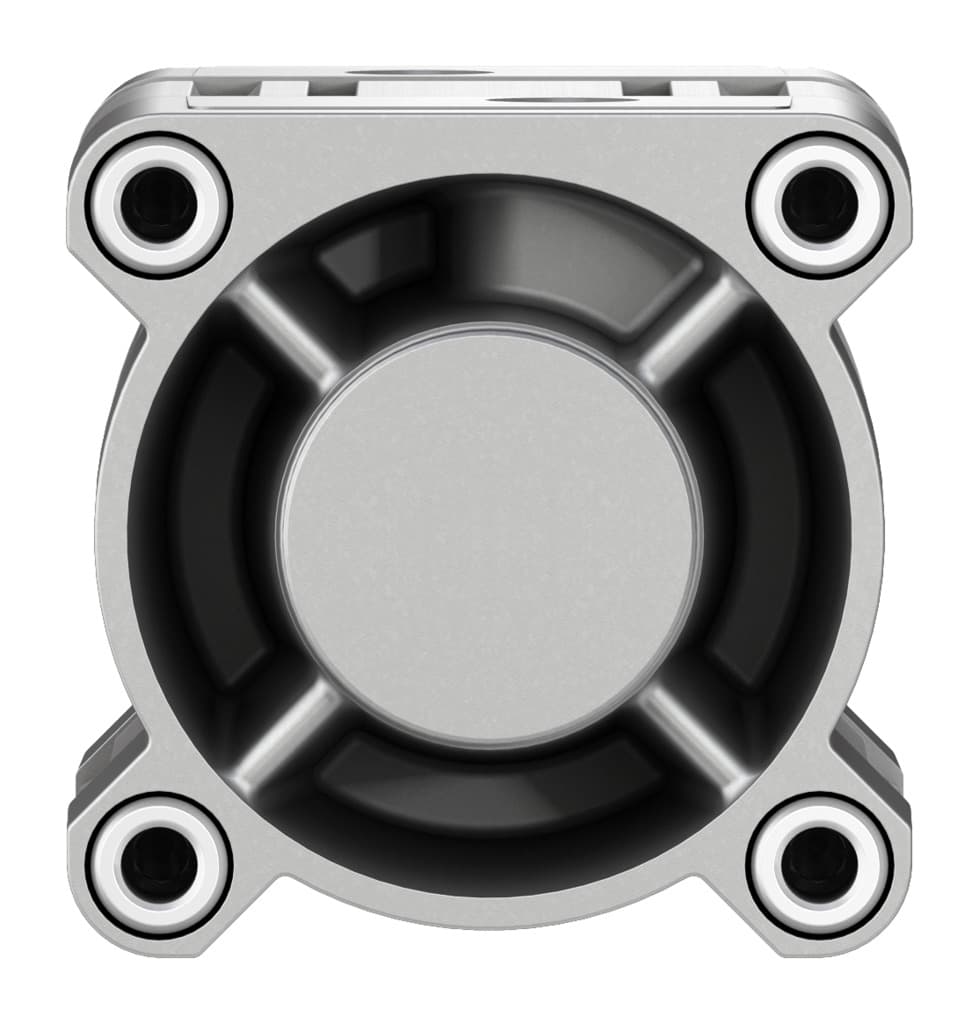

dsbc-80-25-ppsa-n3
Selling Points
- 1The Festo DSBC-80-25-PPSA-N3 pneumatic cylinder features a stroke length of 25 mm, making it suitable for precise and controlled movements in industrial automation.
- 2With a piston diameter of 80 mm, this cylinder provides a robust and reliable performance, ensuring consistent operation in demanding environments.
- 3Equipped with self-adjusting pneumatic end-position cushioning (PPS), the DSBC-80-25-PPSA-N3 ensures smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder is designed to operate within a wide temperature range of -20°C to 80°C, making it versatile for use in various industrial settings.
- 5The Festo DSBC-80-25-PPSA-N3 conforms to the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2660g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383366 |
Specifications may be subject to change without notice
