Product Model

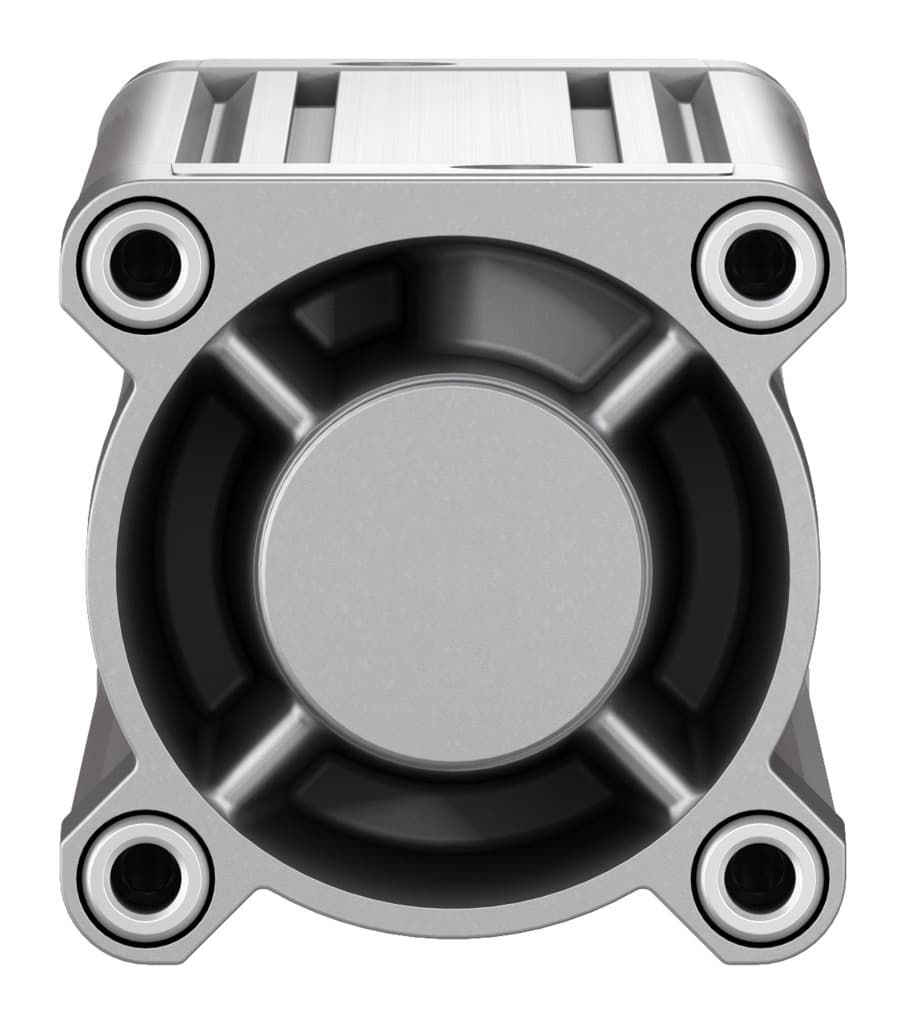

dsbc-80-320-ppsa-n3
Selling Points
- 1High-Performance Pneumatic Cylinder: The Festo DSBC-80-320-PPSA-N3 offers a stroke length of 320 mm and a piston diameter of 80 mm, ensuring precise and reliable operation in various industrial settings.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning, this cylinder provides smooth and controlled movements, reducing wear and tear on the system.
- 3ISO 15552 Compliance: Conforming to the ISO 15552 standard, this cylinder ensures compatibility with a wide range of pneumatic systems, making it a versatile choice for different applications.
- 4Double-Acting Operation: Designed for double-acting operation, the DSBC-80-320-PPSA-N3 can handle both retracting and advancing forces efficiently, making it suitable for a variety of tasks.
- 5Robust Construction: Built with high-alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, this cylinder offers robust construction and durability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 320mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2660g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383375 |
Specifications may be subject to change without notice
