Product Model

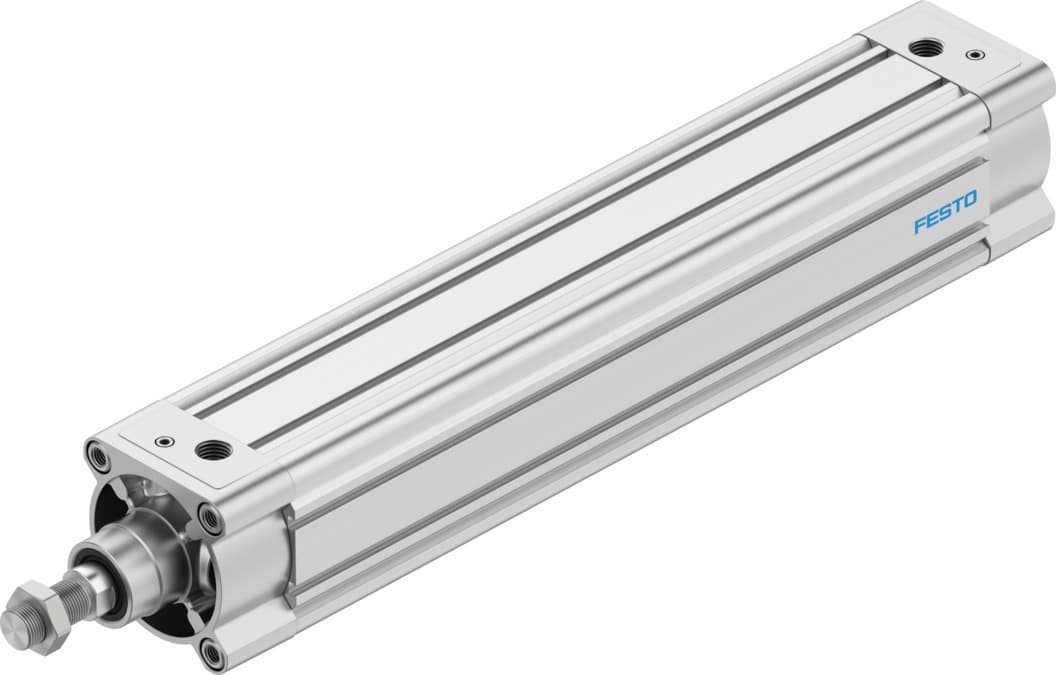

dsbc-80-400-d3-ppva-n3
Selling Points
- 1The Festo DSBC-80-400-D3-PPVA-N3 is a double-acting cylinder that conforms to ISO 15552, ensuring compatibility with a wide range of industrial systems. Its 80mm piston diameter and 400mm stroke provide ample movement for various applications.
- 2This cylinder features pneumatic cushioning, which is adjustable at both ends, allowing for precise control over the movement and reducing wear on the components. This enhances the overall performance and longevity of the cylinder.
- 3The DSBC-80-400-D3-PPVA-N3 is designed with a robust construction, using high-alloy steel for the piston rod and wrought aluminum alloy for the piston. This combination ensures durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 4The cylinder is equipped with a proximity switch for position detection, enabling precise control over the movement and ensuring accurate positioning in various applications. This feature enhances the reliability and efficiency of the system.
- 5Festo offers a wide range of accessories and components that can be easily integrated with the DSBC-80-400-D3-PPVA-N3, including tubes, fittings, and function fittings. This comprehensive support ensures that users can customize their systems to meet specific needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 400mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2720g | Additional weight per 10?mm stroke | 143g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
Flange screws material | Steel, galvanized | Manufacturer ID | 8165595 |
Specifications may be subject to change without notice
