Product Model

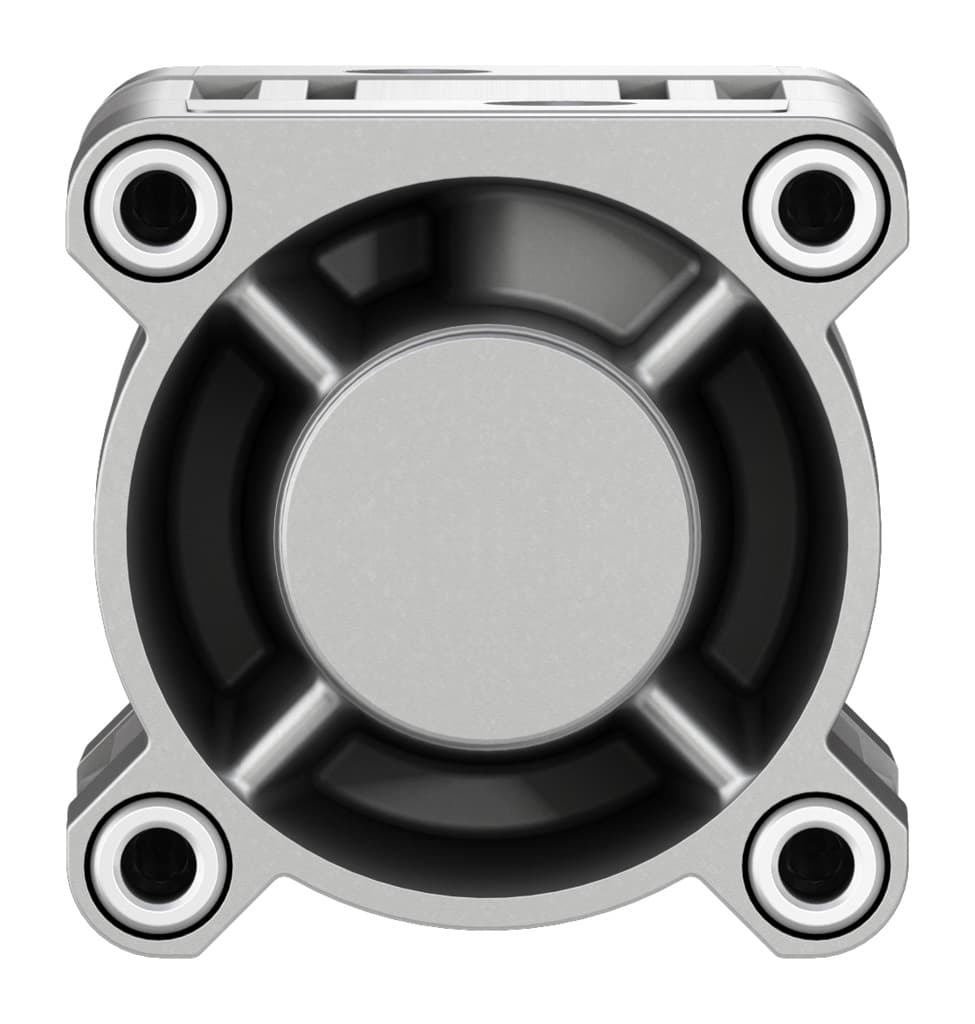

dsbc-80-40-ppsa-n3
Selling Points
- 1The DSBC-80-40-PPSA-N3 features advanced cushioning that ensures smooth operation and reduces wear on the cylinder, enhancing overall performance and longevity.
- 2This ISO cylinder is designed to meet the stringent standards of ISO 15552, ensuring reliability and consistency in your pneumatic systems.
- 3With double-acting operation, the DSBC-80-40-PPSA-N3 can move in both directions, providing greater flexibility and control in your applications.
- 4Constructed from high-alloy steel for the piston rod, wrought aluminum alloy for the piston, and die-cast aluminum for the cover, this cylinder offers exceptional durability and resistance to corrosion.
- 5Equipped with proximity sensors for precise position detection, the DSBC-80-40-PPSA-N3 ensures accurate control and monitoring of your pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 80 mm |
Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Symbol | 00992970 |
Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
Basic weight with 0?mm stroke | 2660g | Additional weight per 10?mm stroke | 92g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Flange screws material | Steel, galvanized |
Manufacturer ID | 1383367 |
Specifications may be subject to change without notice
