Product Model

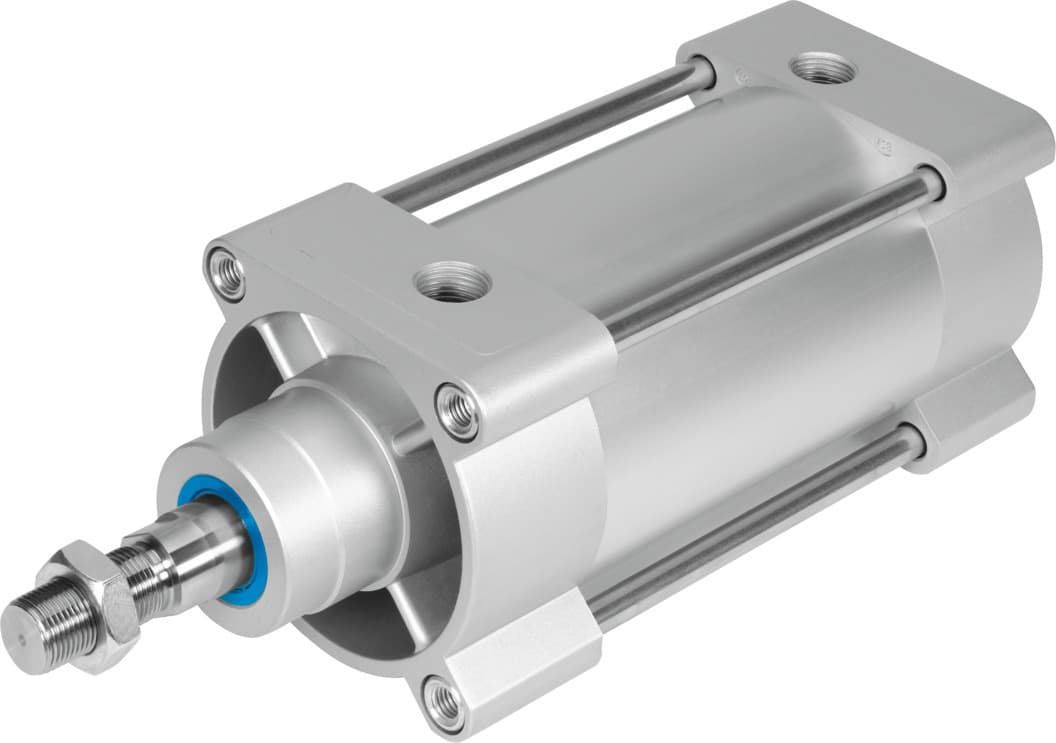

dsbg-125- -ppsa-n3
Selling Points
- 1High-Performance Stroke: The Festo DSBG-125-PPSA-N3 offers a stroke length of 1 mm to 2800 mm, making it versatile for a wide range of industrial applications.
- 2Robust Construction: Built with high-alloy steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, ensuring durability and resistance to corrosion.
- 3Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning, providing smooth operation and reducing wear and tear on the cylinder.
- 4Double-Acting Operation: Designed for double-acting operation, allowing for both extension and retraction strokes with compressed air to ISO 8573-1:2010 standards.
- 5Versatile Mounting Options: Available for mounting via female thread or with accessories, offering flexibility in installation and integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 2800mm | Piston diameter | 125 mm |
Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 2.5J | Cushioning length | 45mm |
Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
Basic weight with 0?mm stroke | 6611g | Additional weight per 10?mm stroke | 143g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | POM | Collar nut material | Steel, galvanized |
Tie rod material | High-alloy steel | Manufacturer ID | 2158471 |
Specifications may be subject to change without notice
