Product Model

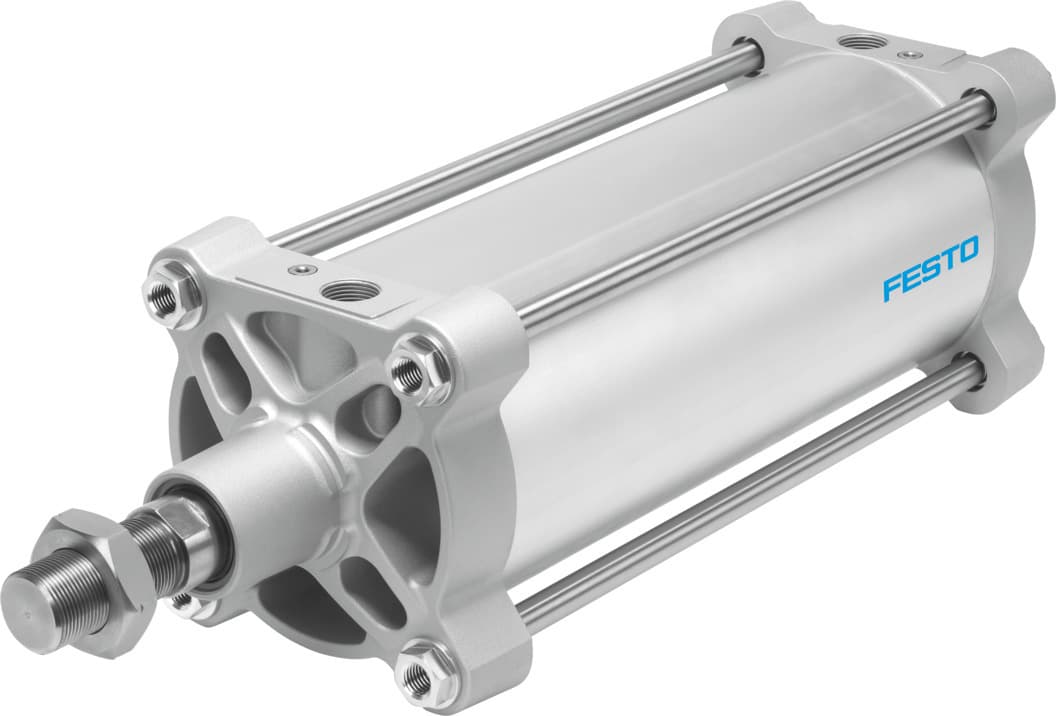

dsbg-200-200-ppva-n3
Selling Points
- 1The DSBG-200-200-PPVA-N3 pneumatic cylinder is engineered for precise and efficient automation, ensuring reliable performance in various industrial applications.
- 2This cylinder features adjustable pneumatic cushioning at both ends, providing customizable damping to suit specific operational needs.
- 3Conforming to the ISO 15552 standard, the DSBG-200-200-PPVA-N3 ensures compatibility with a wide range of industrial systems and components.
- 4With optional mounting positions and a male thread at the piston-rod end, this cylinder offers flexibility in installation and integration.
- 5Made from high-quality materials such as cast aluminum, high-alloy steel, and NBR seals, the DSBG-200-200-PPVA-N3 is built to withstand moderate corrosion stress and operate within a wide temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 200mm | Piston diameter | 200 mm |
Piston rod thread | M36x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | ISO 15552 |
Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 4.8J | Cushioning length | 48mm |
Cushioning length, advancing | 48mm | Cushioning length, retracting | 48mm |
Theoretical force at 6 bar, retracting | 18096N | Theoretical force at 6 bar, advancing | 18850N |
Moving mass | 7288g | Moving mass at 0?mm stroke | 5348g |
Additional moving mass per 10?mm stroke | 97g | Product weight | 20413g |
Basic weight with 0?mm stroke | 15493g | Additional weight per 10?mm stroke | 246g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/4 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | NBR | Material of piston | Cast aluminum |
Piston rod material | High-alloy steel | Piston rod wiper material | NBR |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | Metal polymer compound | Collar nut material | Steel, galvanized |
Tie rod material | High-alloy steel | Manufacturer ID | 2390146 |
Specifications may be subject to change without notice
