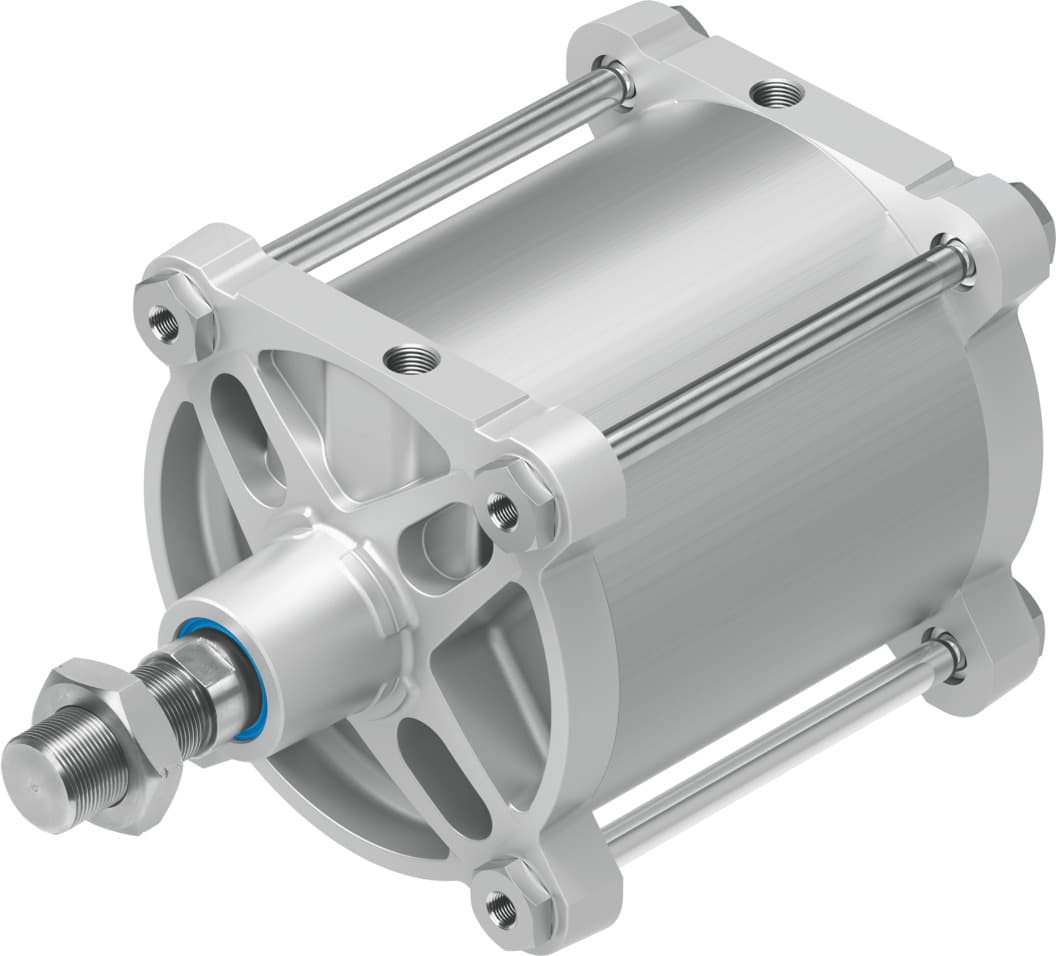

Product Model
dsbg-320- -p-n3
Selling Points
- 1The Festo DSBG-320- -P-N3 offers a stroke range of 1 mm to 2250 mm, making it versatile for various industrial applications.
- 2This pneumatic cylinder features a piston diameter of 320 mm and a piston rod thread of M48x2, ensuring reliable and precise operation.
- 3Equipped with elastic cushioning rings/plates at both ends, the DSBG-320- -P-N3 provides smooth and controlled motion.
- 4The cylinder operates at pressures between 0.06 MPa and 1 MPa (0.6 bar to 10 bar) and supports double-acting operation with compressed air to ISO 8573-1:2010 standards.
- 5Made from high-quality materials including cast aluminum, high-alloy steel, and NBR seals, the DSBG-320- -P-N3 ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 2250mm | Piston diameter | 320 mm |
Piston rod thread | M48x2 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Piston rod end | External thread |
Structural design | Piston Piston rod Tie rod Cylinder barrel | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 12.6J | Theoretical force at 6 bar, retracting | 46385N |
Theoretical force at 6 bar, advancing | 48255N | Moving mass at 0?mm stroke | 16912g |
Additional moving mass per 10?mm stroke | 249g | Basic weight with 0?mm stroke | 50231g |
Additional weight per 10?mm stroke | 623g | Type of mounting | Optionally: With internal thread With accessories |
Pneumatic connection | G1 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum, coated | Piston seal material | NBR |
Material of piston | Cast aluminum | Piston rod material | High-alloy steel |
Piston rod wiper material | NBR | Buffer seal material | TPE-U(PU) |
Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Nut material | Steel, galvanized | Material of bearing | Metal polymer compound |
Collar nut material | Steel, galvanized | Tie rod material | High-alloy steel |
Manufacturer ID | 3178601 |
