Product Model
dsbg-320- -ppva-n3
Selling Points

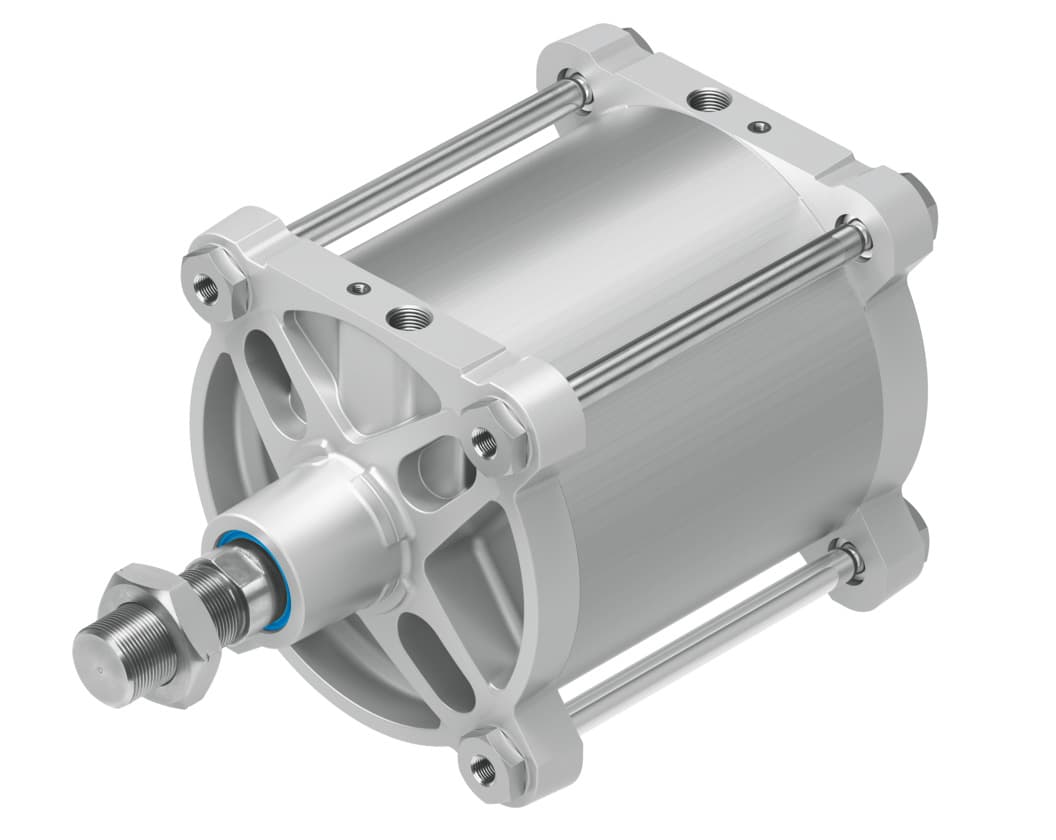

- 1The Festo DSBG-320-PPVA-N3 is an ISO cylinder designed for high-performance applications, featuring a stroke length of 1 mm to 2250 mm and a piston diameter of 320 mm.
- 2This cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and reducing wear on the piston rod.
- 3With a piston rod thread of M48x2, the DSBG-320-PPVA-N3 provides a robust and reliable connection for various mounting options.
- 4The cylinder operates within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar) and supports double-acting operation with compressed air to ISO 8573-1:2010 standards.
- 5Designed for durability, the DSBG-320-PPVA-N3 features a smooth-anodized wrought aluminum alloy cylinder barrel and is compliant with RoHS standards, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 2250mm | Piston diameter | 320 mm |
Piston rod thread | M48x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Piston rod end | External thread |
Structural design | Piston Piston rod Tie rod Cylinder barrel | Position sensing | For proximity sensor |
Symbol | 00991235 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Cushioning length | 65mm |
Cushioning length, advancing | 65mm | Cushioning length, retracting | 65mm |
Theoretical force at 6 bar, retracting | 46385N | Theoretical force at 6 bar, advancing | 48255N |
Moving mass at 0?mm stroke | 16912g | Additional moving mass per 10?mm stroke | 249g |
Basic weight with 0?mm stroke | 50231g | Additional weight per 10?mm stroke | 623g |
Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1 |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Piston seal material | NBR | Material of piston | Cast aluminum |
Piston rod material | High-alloy steel | Piston rod wiper material | NBR |
Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
Material of bearing | Metal polymer compound | Collar nut material | Steel, galvanized |
Tie rod material | High-alloy steel | Manufacturer ID | 3150987 |
Specifications may be subject to change without notice
