Product Model

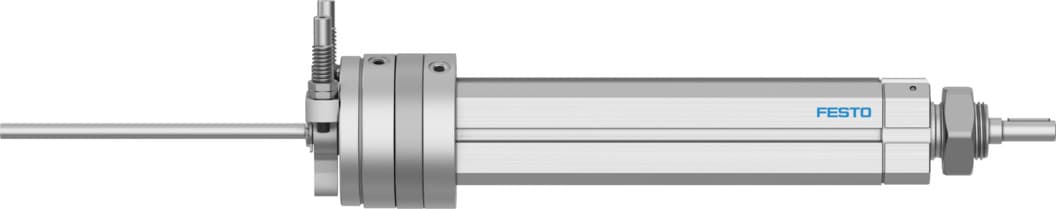

dsl-16-100-270-cc-a-s2-kf-b
Selling Points
- 1The Festo DSL-16-100-270-CC-A-S2-KF-B offers a rotation angle adjustment range of 0° to 270°, allowing for precise control and flexibility in various applications.
- 2This swivel/linear unit features a stroke of 100 mm and a piston diameter of 16 mm, making it suitable for a wide range of industrial tasks.
- 3Equipped with flexible cushioning rings/plates at both ends, the unit provides smooth operation and reduces wear and tear.
- 4The DSL-16-100-270-CC-A-S2-KF-B supports double-acting mode and can be actuated independently for rotary and linear movement, enhancing its versatility.
- 5Designed for use with proximity sensors, this unit ensures accurate position detection and reliable performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 100mm | Piston diameter | 16 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | Guided on ball bearings |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 0.05deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.17Nm | Theoretical force at 6 bar, retracting | 73.5N |
Theoretical force at 6 bar, advancing | 103.5N | Theoretical torque at 6 bar | 1.25Nm |
Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 750g |
Basic weight with 0?mm stroke | 750g | Additional weight per 10?mm stroke | 33g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556607 |
Specifications may be subject to change without notice
