Product Model

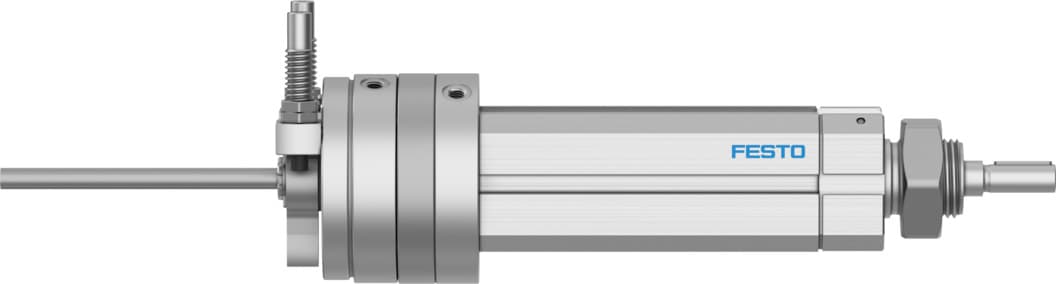

dsl-16-25-270-cc-a-s20-kf-b
Selling Points
- 1The Festo DSL-16-25-270-CC-A-S20-KF-B offers a swivel angle of 270 degrees, allowing for precise rotary movement and linear motion control in various industrial applications.
- 2Equipped with flexible cushioning rings/plates at both ends, this unit provides enhanced shock absorption and stability, ensuring reliable operation in demanding environments.
- 3The DSL-16-25-270-CC-A-S20-KF-B features a double-acting design, enabling both extension and retraction of the piston rod, making it versatile for a wide range of handling tasks.
- 4This swivel/linear unit is designed for use with inductive sensors and proximity sensors, facilitating easy integration into complex automation systems.
- 5With a maximum operating pressure of 8 bar and a maximum impact speed of 500 mm/s, the DSL-16-25-270-CC-A-S20-KF-B is suitable for high-speed applications requiring precise motion control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 25mm | Piston diameter | 16 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991269 |
Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 0.05deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.17Nm | Theoretical force at 6 bar, retracting | 73.5N |
Theoretical force at 6 bar, advancing | 103.5N | Theoretical torque at 6 bar | 1.25Nm |
Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 750g |
Basic weight with 0?mm stroke | 750g | Additional weight per 10?mm stroke | 33g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556586 |
Specifications may be subject to change without notice
