Product Model

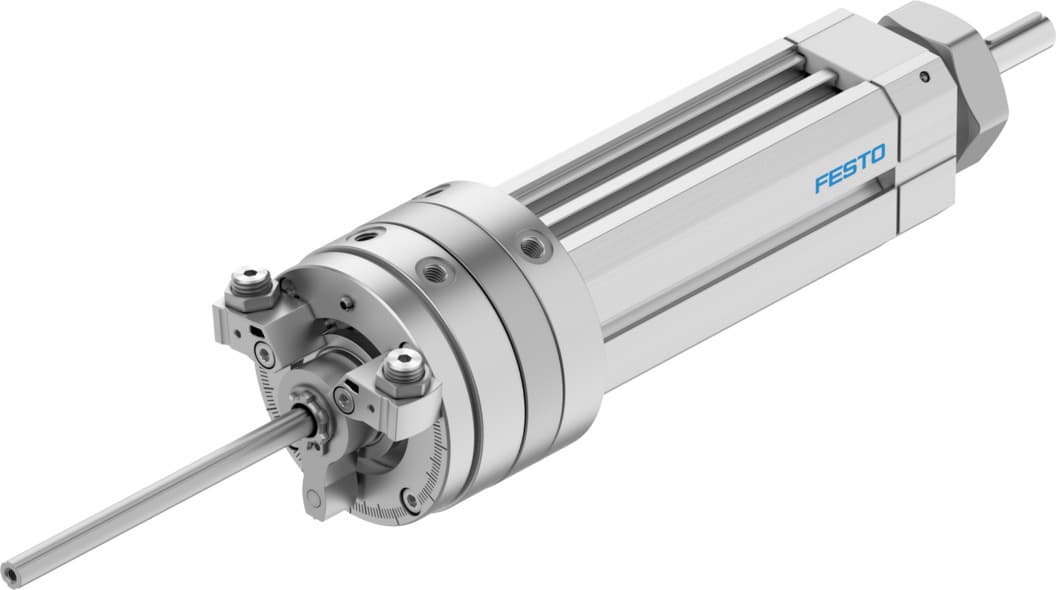

dsl-16-25-270-p-a-s20-kf-b
Selling Points
- 1The Festo DSL-16-25-270-P-A-S20-KF-B offers a 270-degree rotation angle adjustment range, ensuring precise movement in various industrial applications.
- 2Equipped with flexible cushioning rings/plates at both ends, this actuator provides smooth operation and reduces wear and tear on the system.
- 3Designed to operate under pressures of 2.5 to 8 bar, making it suitable for demanding industrial environments.
- 4The actuator can be mounted in any position and offers fine adjustment capabilities, allowing for easy integration into complex systems.
- 5Featuring a maximum swivel frequency of 2 Hz at 6 bar, this actuator ensures reliable and consistent performance in pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 25mm |
Piston diameter | 16 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.17Nm |
Theoretical force at 6 bar, retracting | 73.5N | Theoretical force at 6 bar, advancing | 103.5N |
Theoretical torque at 6 bar | 1.25Nm | Permissible mass moment of inertia | 3.5E-5kgm2 |
Product weight | 700g | Basic weight with 0?mm stroke | 700g |
Additional weight per 10?mm stroke | 33g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556585 |
Specifications may be subject to change without notice
