Product Model

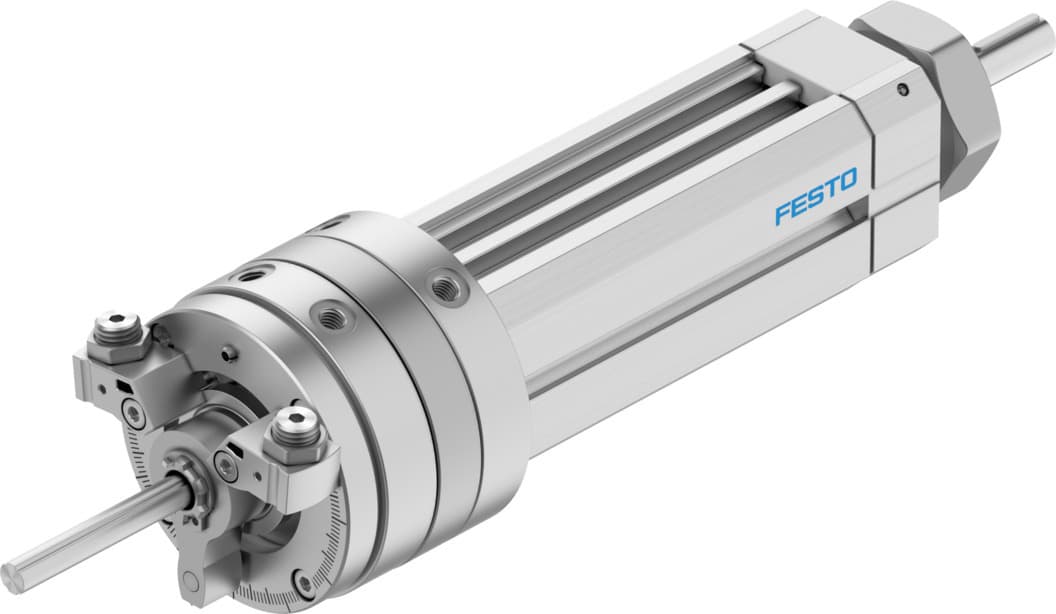

dsl-16-25-270-p-a-s2-kf-b
Selling Points
- 1High Precision Swivel Angle: The Festo DSL-16-25-270-P-A-S2-KF-B offers a precise 270° swivel angle, ensuring accurate movement in your pneumatic system.
- 2Flexible Cushioning: Equipped with flexible cushioning components at both ends, this actuator provides smooth operation and reduces wear and tear.
- 3Hollow Rod Design: The hollow rod design of the DSL-16-25-270-P-A-S2-KF-B allows for easy mounting and flexibility in your automation setup.
- 4Double-Acting Capability: This swivel/linear unit is double-acting, enabling it to move in both directions with equal force, enhancing the efficiency of your pneumatic system.
- 5Robust Construction: Built with durable materials and designed for reliability, the Festo DSL-16-25-270-P-A-S2-KF-B ensures long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 25mm |
Piston diameter | 16 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991268 | Variants | Through piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.17Nm |
Theoretical force at 6 bar, retracting | 73.5N | Theoretical force at 6 bar, advancing | 103.5N |
Theoretical torque at 6 bar | 1.25Nm | Permissible mass moment of inertia | 3.5E-5kgm2 |
Product weight | 700g | Basic weight with 0?mm stroke | 700g |
Additional weight per 10?mm stroke | 33g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556582 |
Specifications may be subject to change without notice
