Product Model

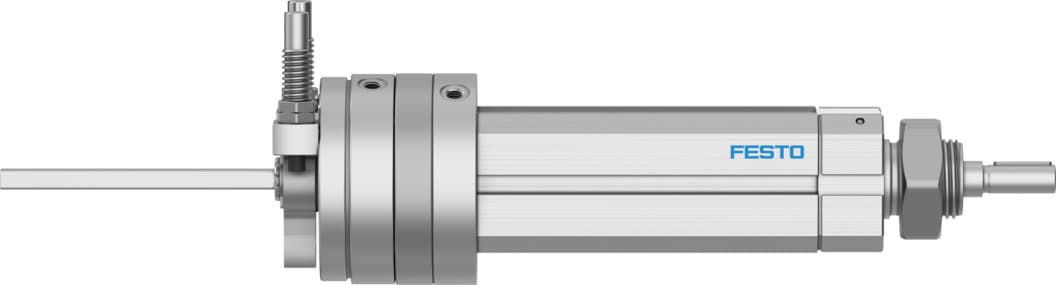

dsl-16-50-270-cc-a-s2-b
Selling Points
- 1The Festo DSL-16-50-270-CC-A-S2-B swivel/linear unit offers precise motion control with a 16mm piston diameter and 50mm stroke, ensuring reliable performance in various applications.
- 2This unit operates in double-acting mode, allowing for both extension and retraction strokes, which enhances its versatility and efficiency in industrial settings.
- 3Equipped with shock absorbers at both ends, the unit provides excellent cushioning and protection against sudden impacts, ensuring smooth operation and extending the lifespan of the component.
- 4With a swivel angle of up to 270°, this unit offers extensive flexibility in positioning, making it suitable for complex motion control applications.
- 5Designed to operate with compressed air to ISO 8573-1:2010 [7:4:4], this unit ensures reliable performance in environments where compressed air is the primary operating medium.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 50mm | Piston diameter | 16 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | With plain-bearing guide |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 2deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.1Nm | Theoretical force at 6 bar, retracting | 73.5N |
Theoretical force at 6 bar, advancing | 102.5N | Theoretical torque at 6 bar | 1.25Nm |
Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 700g |
Basic weight with 0?mm stroke | 700g | Additional weight per 10?mm stroke | 33g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556403 |
Specifications may be subject to change without notice
