Product Model
dsl-20-80-270-p-a-s20-kf-b
Selling Points

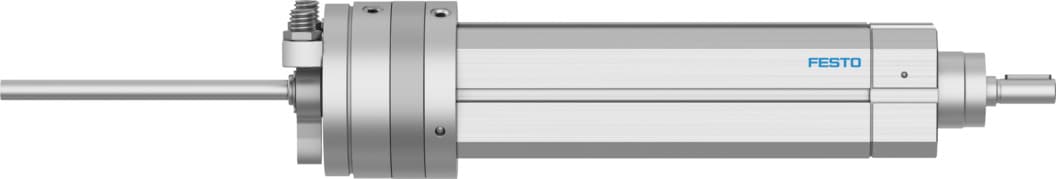

- 1The Festo DSL-20-80-270-P-A-S20-KF-B swivel/linear unit offers precise motion control with a 20mm piston diameter and 80mm stroke, ensuring reliable performance in various applications.
- 2With a swivel angle of 0-272°, this unit provides extensive flexibility for positioning and maneuvering, making it suitable for complex motion tasks.
- 3Equipped with elastic cushioning components at both ends, the unit ensures smooth operation and reduces wear and tear, extending its lifespan.
- 4Designed for double-acting mode of operation, this swivel/linear unit can handle both forward and backward movements, enhancing its versatility in various industrial applications.
- 5Operating on compressed air to ISO 8573-1:2010 [7:4:4], this unit is compatible with standard pneumatic systems, making it easy to integrate into existing setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 80mm |
Piston diameter | 20 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.35Nm |
Theoretical force at 6 bar, retracting | 120.5N | Theoretical force at 6 bar, advancing | 158N |
Theoretical torque at 6 bar | 2.5Nm | Permissible mass moment of inertia | 7.0E-5kgm2 |
Product weight | 1140g | Basic weight with 0?mm stroke | 1140g |
Additional weight per 10?mm stroke | 52g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556639 |
Specifications may be subject to change without notice
