Product Model

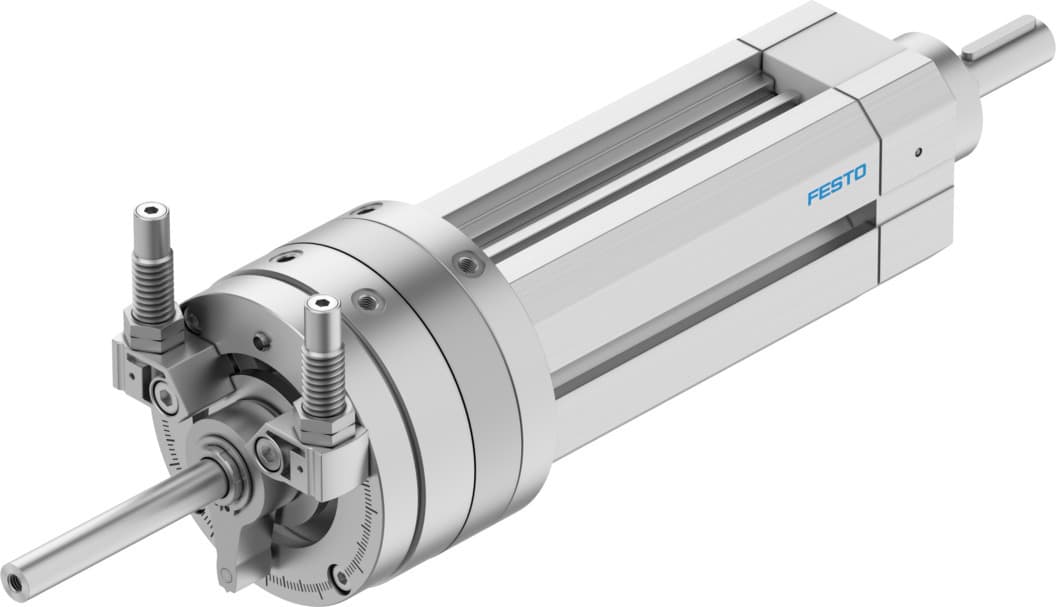

dsl-25- -270-cc-a-s20-kf-b
Selling Points
- 1High Precision Swivel Angle Adjustment: The DSL-25- -270-CC-A-S20-KF-B offers a swivel angle adjustment range of 0 to 246 degrees, ensuring precise control in various industrial applications.
- 2Robust Cushioning System: Equipped with elastic cushioning rings/pads at both ends, this unit provides effective shock absorption, reducing wear and tear on the system.
- 3Versatile Operating Pressure: Compatible with operating pressures ranging from 2.5 to 8 bar, making it suitable for a wide range of industrial environments.
- 4Double-Acting Design: The double-acting design allows for both extension and retraction, enhancing the versatility and efficiency of the swivel/linear unit.
- 5Low Corrosion Stress: With a corrosion resistance class of CRC 1, this unit is designed to withstand low corrosion stress, ensuring durability in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 10deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 10mm 100mm | Piston diameter | 25 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991269 |
Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 0.05deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.7Nm | Theoretical force at 6 bar, retracting | 173.5N |
Theoretical force at 6 bar, advancing | 248N | Theoretical torque at 6 bar | 5Nm |
Permissible mass moment of inertia | 0.0016kgm2 | Product weight | 1750g |
Basic weight with 0?mm stroke | 1750g | Additional weight per 10?mm stroke | 67g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556688 |
