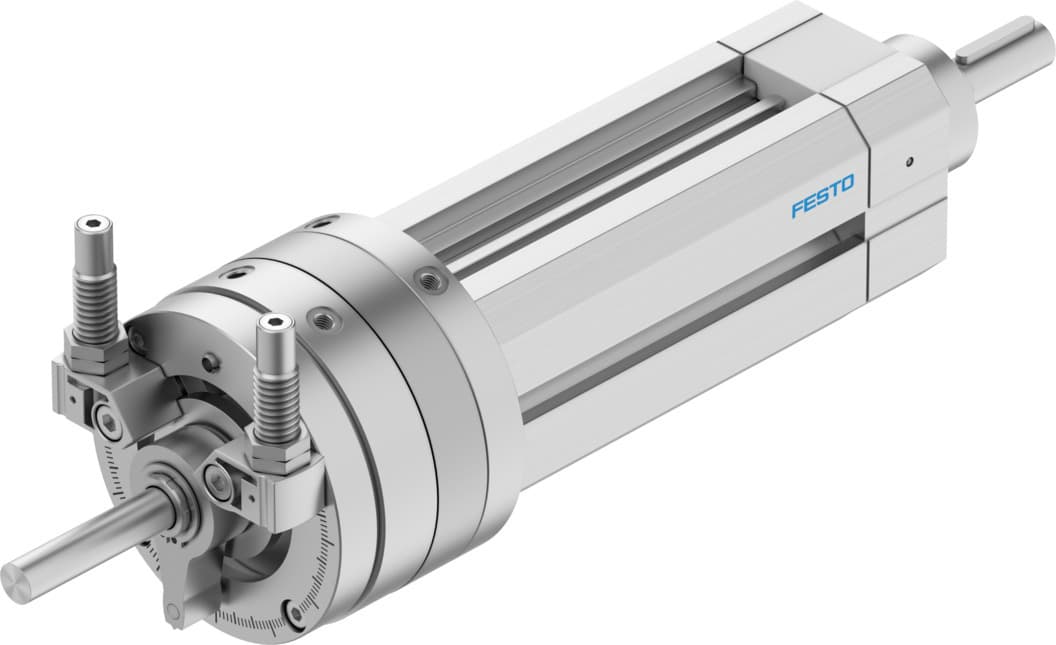

Festo DSL-25-50-270-CC-A-S2-KF-B: High-Performance Swivel/Linear Unit

Selling Points

1The Festo DSL-25-50-270-CC-A-S2-KF-B features a 25 mm piston diameter and a 50 mm stroke, offering precise control and movement in various industrial settings.
2This swivel/linear unit boasts a rotation angle adjustment range of 0° to 246°, allowing for flexible and customizable applications.
3Equipped with shock absorbers at both ends, the DSL-25-50-270-CC-A-S2-KF-B ensures smooth operation and reduces impact stress, enhancing overall performance.
4The unit supports double-acting operation and can be mounted in any position, making it versatile for different application requirements.
5With a maximum operating pressure of 8 bar and a maximum impact speed of 500 mm/s, the DSL-25-50-270-CC-A-S2-KF-B is designed to handle demanding industrial conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Cushioning angle	10deg	Adjustment range of swivel angle	0deg 246deg
Stroke	50mm	Piston diameter	25 mm
Swivel angle	0deg 246deg	Cushioning	Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends
Mounting position	Any	Precision adjustment	-3deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991268
Variants	Through piston rod	Protection against torsion/guide	Guided on ball bearings
Operating pressure	2.5bar 8bar	Max. impact velocity	0.5m/s
Max. swivel frequency at 6?bar	1Hz	Swivel angle backlash	0.05deg
Repetition accuracy	0.1deg	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-10°C 60°C
Dynamic load torque	0.7Nm	Theoretical force at 6 bar, retracting	173.5N
Theoretical force at 6 bar, advancing	248N	Theoretical torque at 6 bar	5Nm
Permissible mass moment of inertia	0.0016kgm2	Product weight	1750g
Basic weight with 0?mm stroke	1750g	Additional weight per 10?mm stroke	67g
Type of mounting	Optionally: Clamped in T slot With external thread	Pneumatic connection	M5
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Smooth anodized	Piston rod material	Tempered steel
Manufacturer ID	556667

Specifications may be subject to change without notice
