Product Model

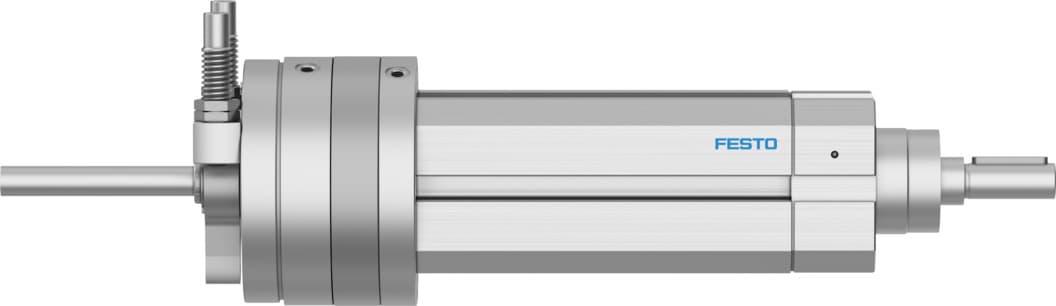

dsl-25-50-270-p-a-s20-kf-b
Selling Points
- 1The Festo DSL-25-50-270-P-A-S2-KF-B offers a rotation angle adjustment range of 0 to 270 degrees, ensuring precise control in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this unit provides robust protection against torque and guide, ensuring reliable operation under dynamic loads.
- 3The swivel/linear unit can be used in double-acting mode, allowing for flexible operation in different environments and applications.
- 4With an optional fine adjustment feature, the DSL-25-50-270-P-A-S2-KF-B can be easily integrated into existing systems, minimizing installation time and effort.
- 5Operating within a pressure range of 2.5 to 8 bar and featuring a maximum impact speed of 500 mm/s, this unit delivers high performance in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 50mm |
Piston diameter | 25 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.7Nm |
Theoretical force at 6 bar, retracting | 173.5N | Theoretical force at 6 bar, advancing | 248N |
Theoretical torque at 6 bar | 5Nm | Permissible mass moment of inertia | 1.1E-4kgm2 |
Product weight | 1650g | Basic weight with 0?mm stroke | 1650g |
Additional weight per 10?mm stroke | 67g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556669 |
Specifications may be subject to change without notice
