Product Model

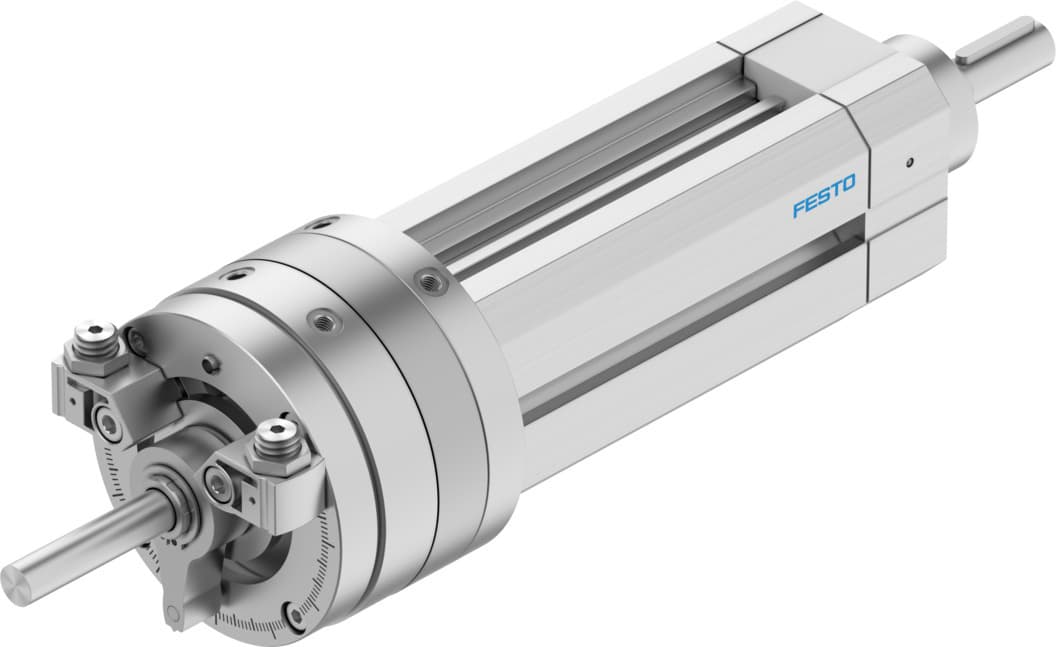

dsl-25-50-270-p-a-s2-kf-b
Selling Points
- 1The DSL-25-50-270-P-A-S2-KF-B offers a wide swivel angle range of 0° to 270°, ensuring precise positioning in various automation applications.
- 2Built with high-quality materials, including wrought aluminum alloy and tempered steel, this actuator unit provides durability and resistance to corrosion.
- 3Equipped with elastic cushioning rings/pads at both ends, the DSL-25-50-270-P-A-S2-KF-B ensures smooth operation and reduces wear and tear.
- 4Available for any mounting position, this actuator unit can be clamped in T slots or mounted with external threads, offering flexibility in installation.
- 5Designed for operation with compressed air (ISO 8573-1:2010), this actuator unit supports pressures up to 8 bar and has a maximum swivel frequency of 2 Hz at 6 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 50mm |
Piston diameter | 25 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991268 | Variants | Through piston rod |
Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.7Nm |
Theoretical force at 6 bar, retracting | 173.5N | Theoretical force at 6 bar, advancing | 248N |
Theoretical torque at 6 bar | 5Nm | Permissible mass moment of inertia | 1.1E-4kgm2 |
Product weight | 1650g | Basic weight with 0?mm stroke | 1650g |
Additional weight per 10?mm stroke | 67g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556666 |
Specifications may be subject to change without notice
