Product Model

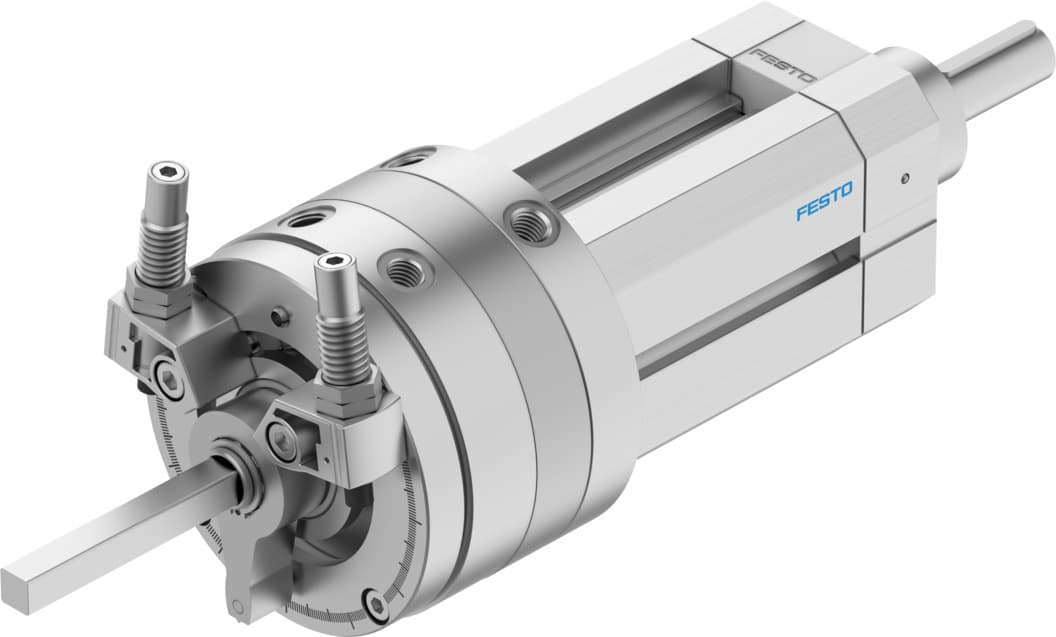

dsl-32- -270-cc-a-s2-b
Selling Points
- 1The Festo DSL-32-25-270-CC-A-S2-B offers precise motion control with a 32mm piston diameter and 25mm stroke, ensuring reliable performance in various industrial applications.
- 2With a 270° swivel angle, this unit provides extensive rotational capability, making it versatile for complex motion requirements.
- 3Equipped with shock absorbers at both ends, this swivel/linear unit reduces impact and ensures smooth operation, extending the lifespan of the component.
- 4The plain-bearing guide ensures smooth linear movement, minimizing friction and wear, thereby enhancing the overall efficiency of the system.
- 5Enjoy free shipping and lifetime technical support with the purchase of the Festo DSL-32-25-270-CC-A-S2-B, providing peace of mind and hassle-free maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 12deg | Adjustment range of swivel angle | 0deg 246deg |
Stroke | 10mm 200mm | Piston diameter | 32 mm |
Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | With plain-bearing guide |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 0.7Hz | Swivel angle backlash | 2deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 0.8Nm | Theoretical force at 6 bar, retracting | 294N |
Theoretical force at 6 bar, advancing | 422.5N | Theoretical torque at 6 bar | 10Nm |
Permissible mass moment of inertia | 0.0021kgm2 | Product weight | 3000g |
Basic weight with 0?mm stroke | 3000g | Additional weight per 10?mm stroke | 109g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | G1/8 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556529 |
Specifications may be subject to change without notice
