Product Model
dsl-32- -270-p-a-s2-b
Selling Points

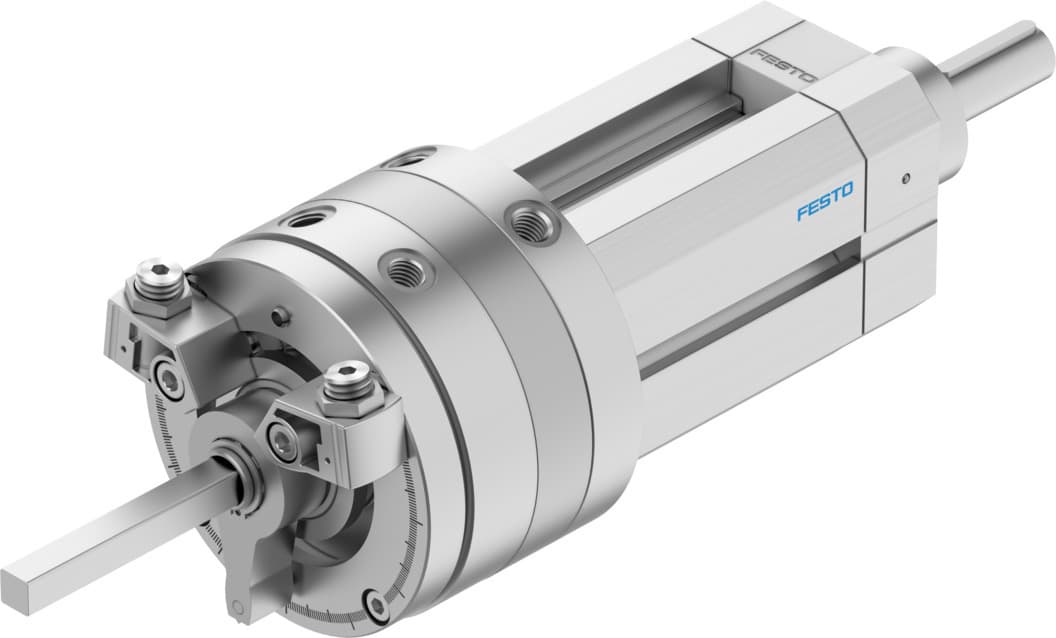

- 1The Festo DSL-32-80-270-P-A-S2-B is a high-performance pneumatic linear actuator designed for precise motion control, ensuring reliable operation in various industrial applications.
- 2This actuator features a 32mm piston diameter and a maximum swivel angle of 270°, making it versatile for a wide range of motion requirements.
- 3Equipped with shock absorbers (CL/CR/CC), the DSL-32-80-270-P-A-S2-B provides enhanced cushioning and stability, reducing wear and tear on the system.
- 4The actuator operates within a temperature range of -10°C to +60°C and supports filtered compressed air, lubricated or unlubricated, for optimal performance.
- 5Designed for integration with inductive sensors and proximity sensors, the DSL-32-80-270-P-A-S2-B offers advanced position sensing capabilities for precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 200mm |
Piston diameter | 32 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991268 | Variants | Through piston rod |
Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 0.8Nm |
Theoretical force at 6 bar, retracting | 294N | Theoretical force at 6 bar, advancing | 422.5N |
Theoretical torque at 6 bar | 10Nm | Permissible mass moment of inertia | 1.7E-4kgm2 |
Product weight | 2840g | Basic weight with 0?mm stroke | 2840g |
Additional weight per 10?mm stroke | 109g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | G1/8 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556528 |
Specifications may be subject to change without notice
