Product Model

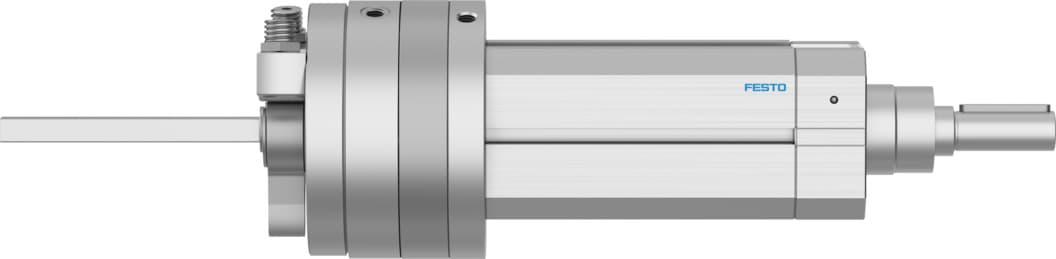

dsl-40-100-270-p-a-s2-b
Selling Points
- 1Double-acting operation: The Festo DSL-40-100-270-P-A-S2-B offers double-acting mode, allowing for precise control in both directions of motion.
- 2Elastic cushioning: Equipped with elastic cushioning components at both ends, this unit provides smooth operation and reduces wear and tear.
- 3Recirculating ball bearing guide: The recirculating ball bearing guide ensures high precision and protection against torque, making it suitable for demanding applications.
- 4Wide swivel angle: With a swivel angle of 0° to 272°, this actuator offers versatile positioning capabilities in various industrial settings.
- 5High operating pressure: Designed to operate at pressures from 2.5 to 8 bar, the Festo DSL-40-100-270-P-A-S2-B is reliable and efficient in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 100mm |
Piston diameter | 40 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991268 | Variants | Through piston rod |
Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 1.1Nm |
Theoretical force at 6 bar, retracting | 495N | Theoretical force at 6 bar, advancing | 660N |
Theoretical torque at 6 bar | 20Nm | Permissible mass moment of inertia | 2.4E-4kgm2 |
Product weight | 5000g | Basic weight with 0?mm stroke | 5000g |
Additional weight per 10?mm stroke | 170g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | G1/8 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556558 |
Specifications may be subject to change without notice
