Product Model
dsl-40- -270-cc-a-s2-b
Selling Points

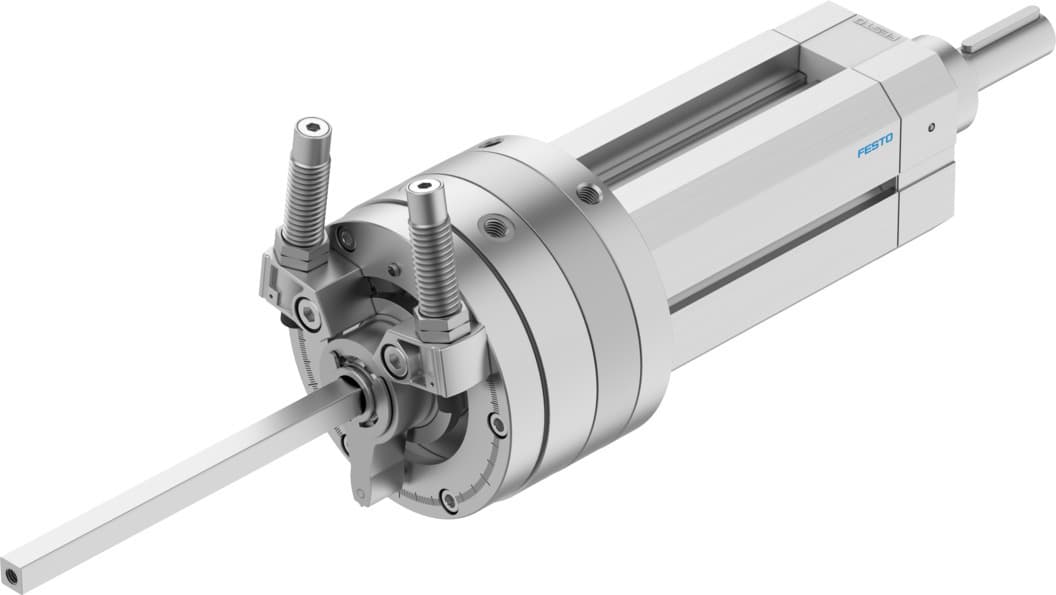

- 1The Festo DSL-40-40-270-CC-A-S2-B offers a precise 270° swivel angle, ensuring accurate and reliable motion in your automation applications.
- 2This swivel/linear unit is double-acting, allowing for both extension and retraction, making it versatile for a wide range of pneumatic applications.
- 3Equipped with shock absorbers at both ends, this unit provides smooth and controlled motion, reducing wear and tear on the system.
- 4The plain-bearing guide ensures smooth linear motion, minimizing friction and increasing the overall efficiency of your automation system.
- 5Enjoy free shipping and lifetime technical support with the Festo DSL-40-40-270-CC-A-S2-B, ensuring you have the right tools and support for your projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cushioning angle | 16deg | Adjustment range of swivel angle | 0deg 240deg |
Stroke | 10mm 200mm | Piston diameter | 40 mm |
Swivel angle | 0deg 240deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
Mounting position | Any | Precision adjustment | -3deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991268 |
Variants | Through piston rod | Protection against torsion/guide | With plain-bearing guide |
Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
Max. swivel frequency at 6?bar | 0.7Hz | Swivel angle backlash | 2deg |
Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
Dynamic load torque | 1.1Nm | Theoretical force at 6 bar, retracting | 495N |
Theoretical force at 6 bar, advancing | 660N | Theoretical torque at 6 bar | 20Nm |
Permissible mass moment of inertia | 0.004kgm2 | Product weight | 5200g |
Basic weight with 0?mm stroke | 5200g | Additional weight per 10?mm stroke | 170g |
Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | G1/8 |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
Manufacturer ID | 556577 |
Specifications may be subject to change without notice
