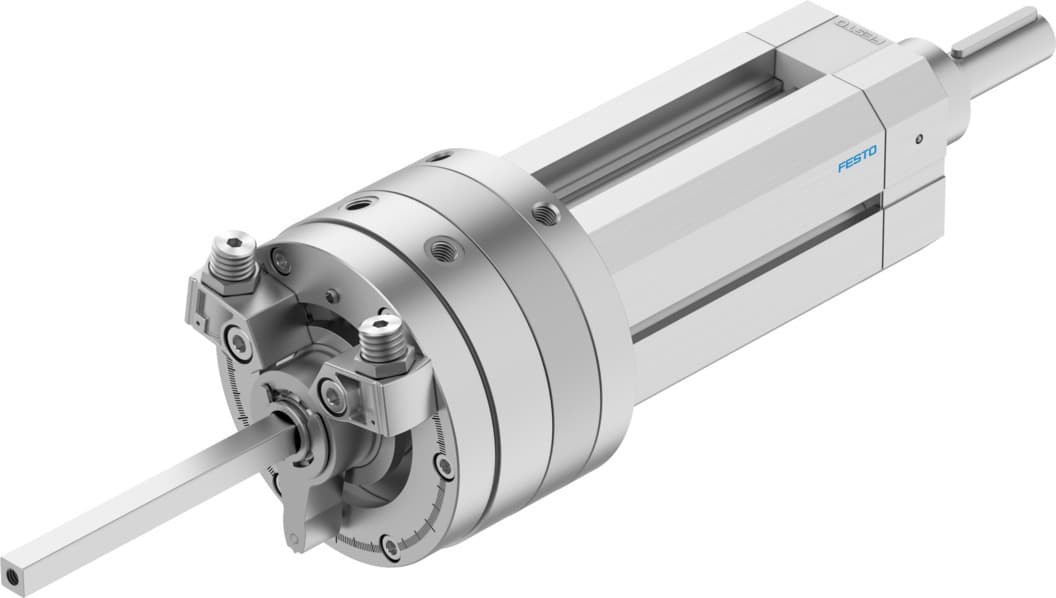

Product Model
dsl-40- -270-p-a-s20-b
Selling Points
- 1The Festo DSL Series 8 bar double action pneumatic rotary actuator offers a precise 240° rotary angle, ensuring accurate and reliable motion in industrial applications.
- 2This actuator features double action, allowing for both forward and reverse motion, enhancing versatility and efficiency in various industrial settings.
- 3With a maximum operating pressure of 8 bar, the DSL Series is built to withstand demanding conditions, ensuring durability and long-lasting performance.
- 4Suitable for a wide range of industrial applications, including those requiring swivel and linear motion, the Festo DSL Series is a versatile solution for various mechanical tasks.
- 5Equipped with high-quality components, including a built-in magnet and shock absorbers at both ends, this actuator provides smooth and controlled motion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 200mm |
Piston diameter | 40 mm | Swivel angle | 0deg 272deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991269 | Variants | Through, hollow piston rod |
Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Dynamic load torque | 1.1Nm |
Theoretical force at 6 bar, retracting | 495N | Theoretical force at 6 bar, advancing | 660N |
Theoretical torque at 6 bar | 20Nm | Permissible mass moment of inertia | 2.4E-4kgm2 |
Product weight | 5000g | Basic weight with 0?mm stroke | 5000g |
Additional weight per 10?mm stroke | 170g | Type of mounting | Optionally: Clamped in T slot With external thread |
Pneumatic connection | G1/8 | Cover material | Wrought aluminum alloy Anodized |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
Piston rod material | Tempered steel | Manufacturer ID | 556579 |
Specifications may be subject to change without notice
