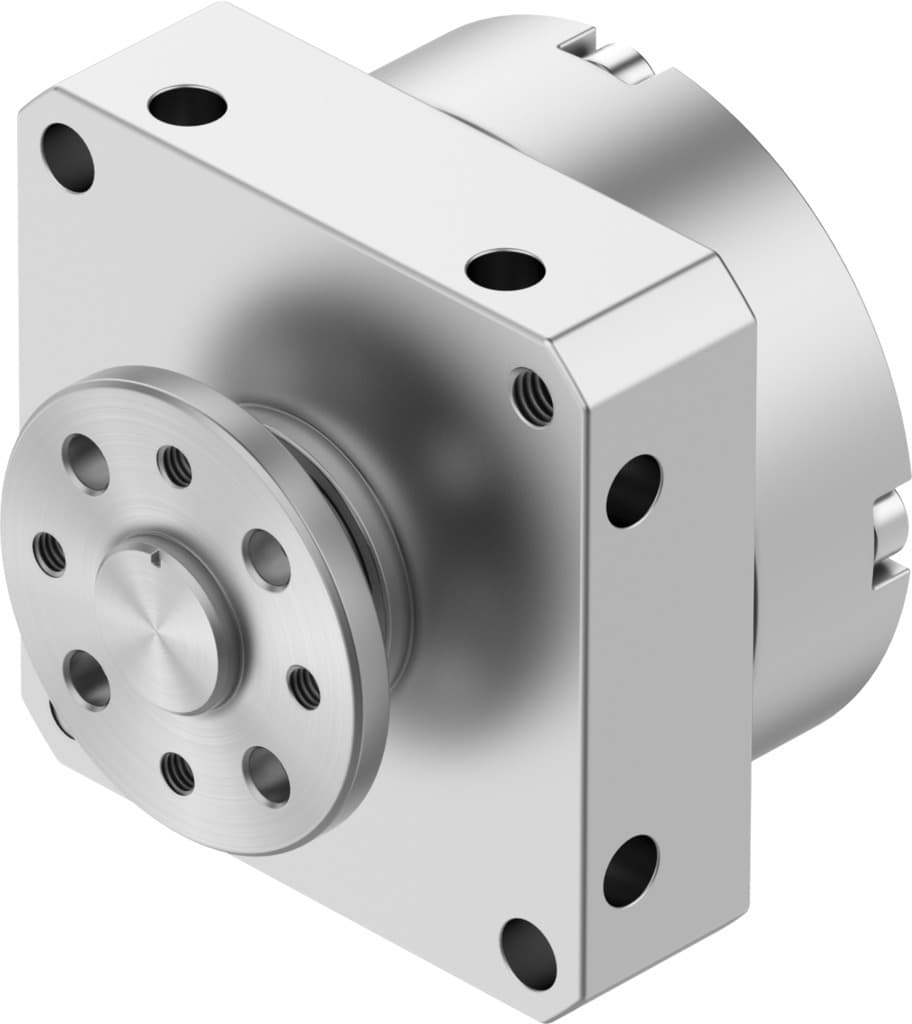

Product Model
dsm-10-180-p-fw
Selling Points
- 1The Festo DSM-10-180-P-FW semi-rotary drive offers a swivel angle of 0 to 180 degrees, providing versatile positioning in various automation applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this drive ensures smooth operation and reduces wear and tear on the system.
- 3The DSM-10-180-P-FW operates within a pressure range of 2.5 to 8 bar, making it suitable for a wide range of pneumatic systems.
- 4With a maximum swivel frequency of 3 Hz at 6 bar, this drive provides reliable and efficient operation in high-demand applications.
- 5Constructed from high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, the DSM-10-180-P-FW ensures durability and resistance to wear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Cushioning angle | 0.5deg |
Swivel angle | 0deg 180deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | None |
Symbol | 00991265 | Operating pressure | 2.5bar 8bar |
Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.85Nm | Permissible mass moment of inertia | 0.0026kgm2 |
Product weight | 150g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 185941 |
