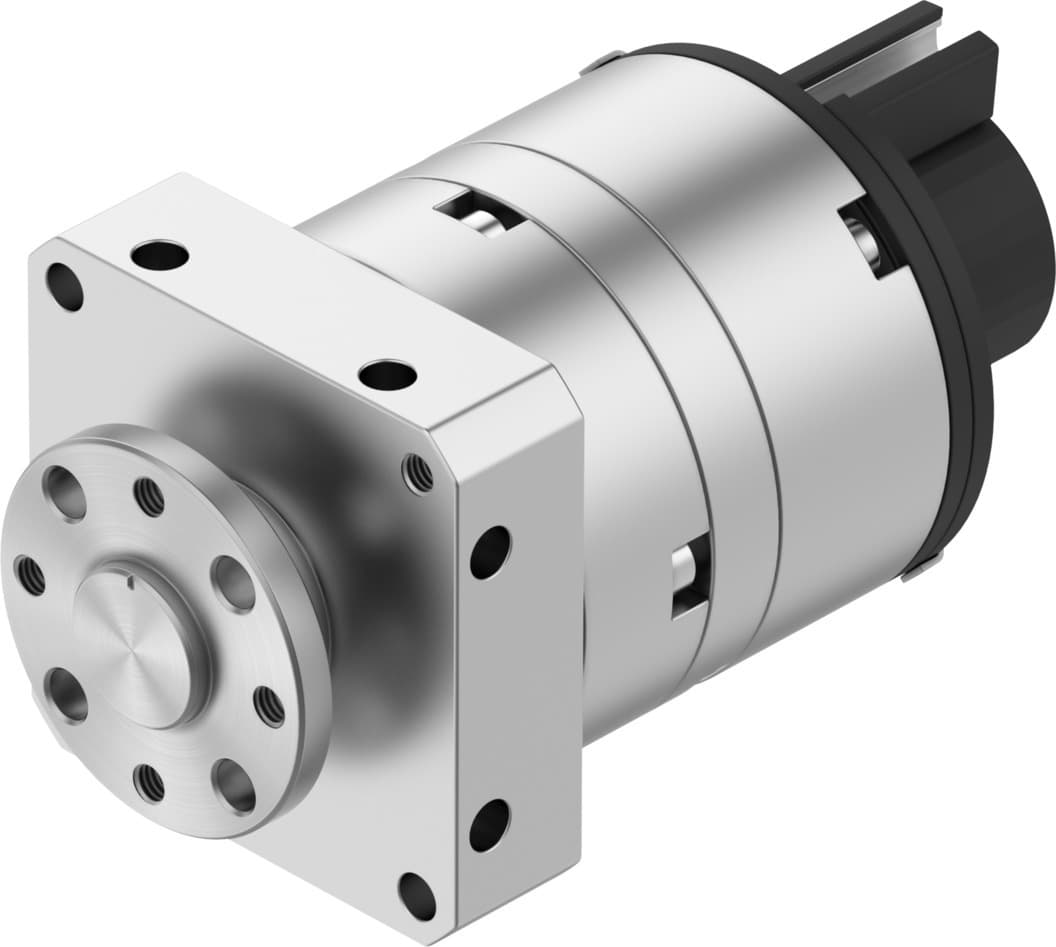

Festo DSM-10-240-P-A-FF-FW Semi-Rotary Drive | High-Quality Pneumatic Solutions

Selling Points

1The Festo DSM-10-240-P-A-FF-FW semi-rotary drive offers a cushioning angle of 0 degrees, ensuring smooth operation and minimizing wear on components.
2This drive features a rotation angle adjustment range of 0 to 200 degrees, providing versatile positioning capabilities for various industrial applications.
3With a swivel angle of 0 to 200 degrees, the DSM-10-240-P-A-FF-FW allows for flexible mounting positions, enhancing system flexibility and adaptability.
4The drive includes fine adjustment capabilities of up to -5 degrees, ensuring precise control and alignment in complex mechanical systems.
5Designed with a double-acting principle and rotary vane structure, the DSM-10-240-P-A-FF-FW offers reliable position detection via proximity switch, ensuring accurate positioning and operation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	10	Cushioning angle	0deg
Adjustment range of swivel angle	0deg 200deg	Swivel angle	0deg 200deg
Mounting position	Any	Precision adjustment	-5deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991265
Operating pressure	2.5bar 8bar	Max. swivel frequency at 6?bar	2Hz
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.85Nm	Permissible mass moment of inertia	0.0026kgm2
Product weight	265g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185947
