Product Model

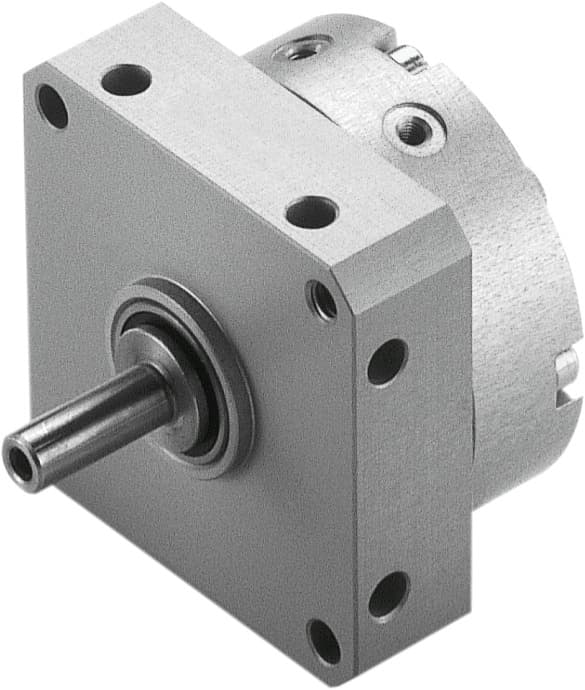

dsm-10-90-p
Selling Points
- 1Precision Swivel Angle: The DSM-10-90-P offers a swivel angle of 0 to 90 degrees, ensuring precise movement in a wide range of applications.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends, this actuator provides smooth operation and reduces wear and tear.
- 3Versatile Mounting: The DSM-10-90-P can be mounted in any position, offering flexibility in system design and installation.
- 4High-Pressure Operation: Designed to operate under pressures of 2.5 to 8 bar, this actuator is suitable for demanding industrial environments.
- 5Compact Design: Weighing only 140 grams, the DSM-10-90-P is a compact and lightweight solution for various automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Cushioning angle | 0.5deg |
Swivel angle | 0deg 90deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | None |
Symbol | 00991265 | Operating pressure | 2.5bar 8bar |
Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.85Nm | Permissible mass moment of inertia | 0.0026kgm2 |
Product weight | 140g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 173192 |
Specifications may be subject to change without notice
