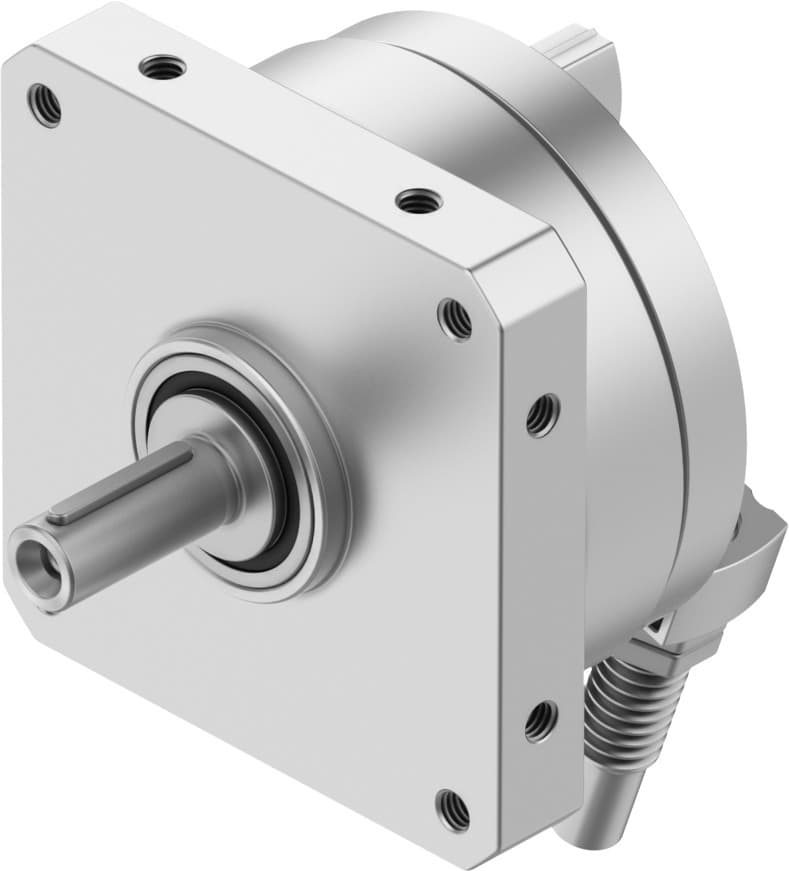

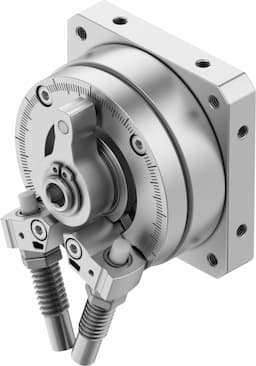

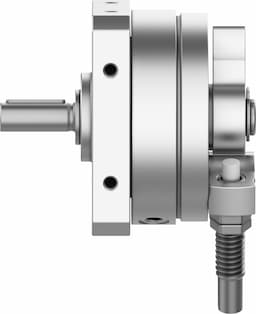

Festo DSM-12-270-CC-A-B Semi-Rotary Drive | High Precision & Flexibility

Selling Points

1The Festo DSM-12-270-CC-A-B semi-rotary drive offers a semi-rotary drive with infinitely adjustable swivel angles from 0 to 246 degrees, ensuring precise positioning in various applications.
2Equipped with shock absorbers at both ends, this drive provides enhanced cushioning and stability, reducing wear and tear on the system.
3The DSM-12-270-CC-A-B supports double-acting operation and is designed with a rotary vane principle, making it suitable for a wide range of pneumatic applications.
4This semi-rotary drive features position detection capabilities for proximity sensors, ensuring accurate positioning and control in complex systems.
5Operating within a pressure range of 2 to 10 bar, the DSM-12-270-CC-A-B offers high flexibility and can handle various operating conditions, including high-frequency swiveling at 6 bar.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12	Cushioning angle	15deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	1.5Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	18N
Max. radial force	45N	Theoretical torque at 6 bar	1.25Nm
Permissible mass moment of inertia	0.008kgm2	Product weight	285g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	547572

Specifications may be subject to change without notice
