Product Model

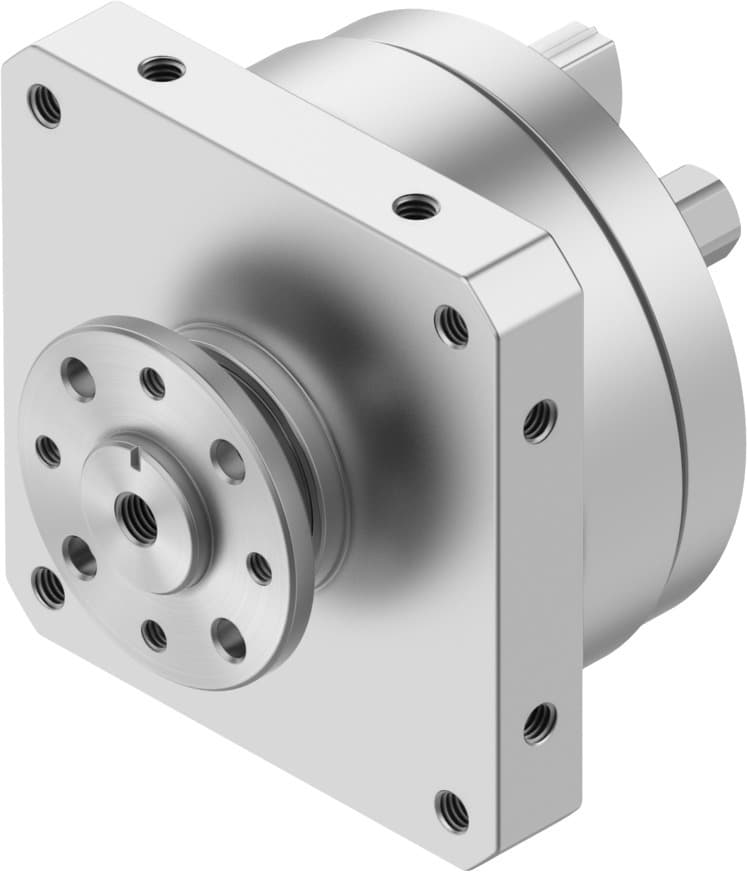

dsm-12-270-fw-a-b
Selling Points
- 1The DSM-12-270-FW-A-B features elastic cushioning rings/plates with stops at both ends, ensuring smooth and controlled motion in various applications.
- 2With a swivel angle adjustment range of 0 to 246 degrees, this semi-rotary drive offers precise control and flexibility in positioning.
- 3Designed for double-acting operation, the DSM-12-270-FW-A-B can operate in both directions, enhancing its versatility in industrial automation.
- 4Equipped with position detection capabilities for proximity sensors, this drive ensures accurate positioning and control in complex systems.
- 5Operating within a pressure range of 2 to 10 bar, the DSM-12-270-FW-A-B is compatible with compressed air in accordance with ISO 8573-1:2010, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 18N | Max. radial force | 45N |
Theoretical torque at 6 bar | 1.25Nm | Product weight | 260g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547596 |
Specifications may be subject to change without notice
