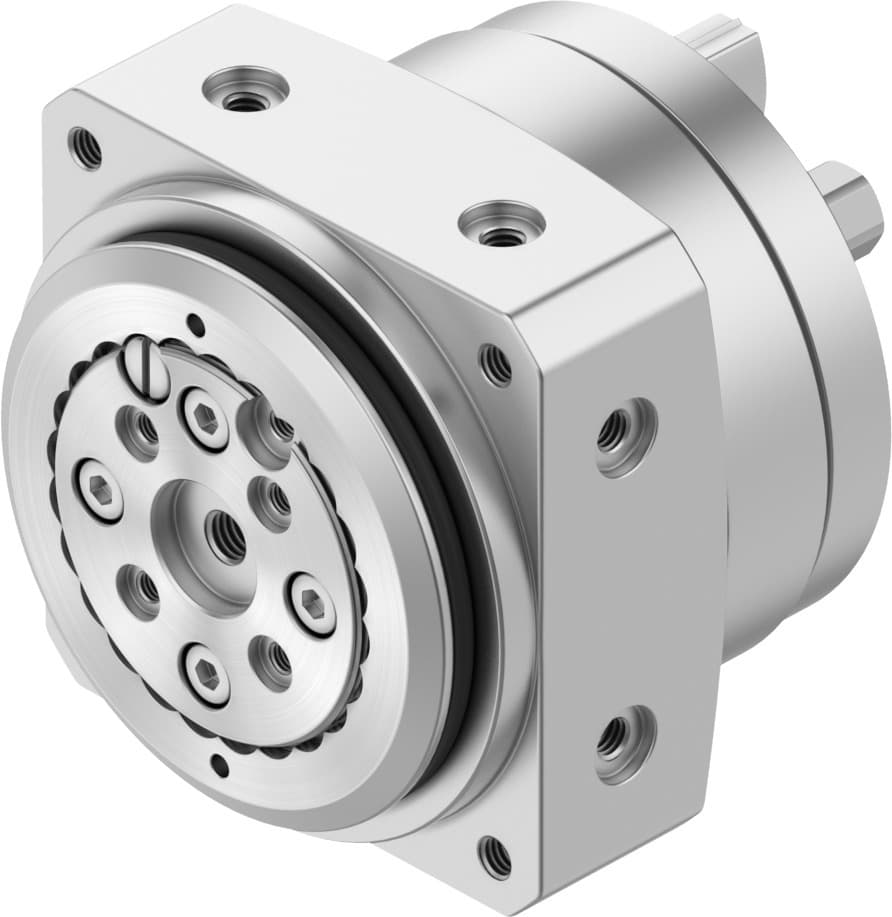

Product Model
dsm-12-270-hd-a-b
Selling Points
- 1The Festo DSM-12-270-HD-A-B offers a theoretical torque of 1.25 Nm, making it ideal for demanding industrial applications.
- 2With a swivel angle adjustment range of 0 to 246 degrees, this drive provides flexibility and precision in various operating conditions.
- 3Equipped with shock absorbers at both ends, the DSM-12-270-HD-A-B ensures smooth operation and reduces wear and tear on the drive.
- 4Designed to operate with compressed air to ISO 8573-1:2010 standards, this drive is reliable and efficient in various industrial environments.
- 5Built with high-quality materials, including steel and wrought aluminum alloy, the DSM-12-270-HD-A-B offers durability and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 3bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 180N |
Max. radial force | 200N | Theoretical torque at 6 bar | 1.25Nm |
Product weight | 375g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369110 |
Specifications may be subject to change without notice
