Product Model

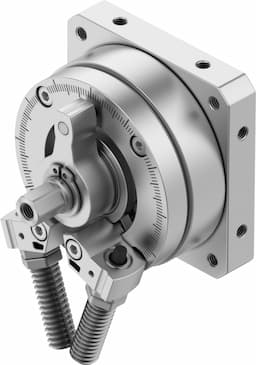

dsm-12-270-p1-fw-a-b
Selling Points
- 1High Precision Swivel Angle: 246° swivel angle for versatile applications.
- 2Elastic Cushioning: Double-sided elastic cushioning rings/pads with fixed stop for smooth operation.
- 3Double-Acting Operation: Standard double-acting rotary vane actuator for reliable performance.
- 4Flexible Mounting Options: Optional mounting position and fine adjustment up to -6°.
- 5Compliant with ISO Standards: Operating medium compliant with ISO 8573-1:2010 and RoHS compliant materials.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Cushioning angle | 10deg |
Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 18N |
Max. radial force | 45N | Theoretical torque at 6 bar | 1.25Nm |
Permissible mass moment of inertia | 0.015kgm2 | Product weight | 303g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 566204 |
Specifications may be subject to change without notice
