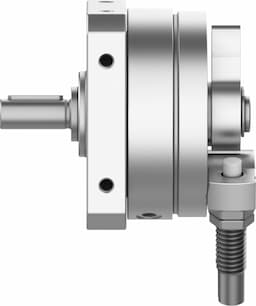

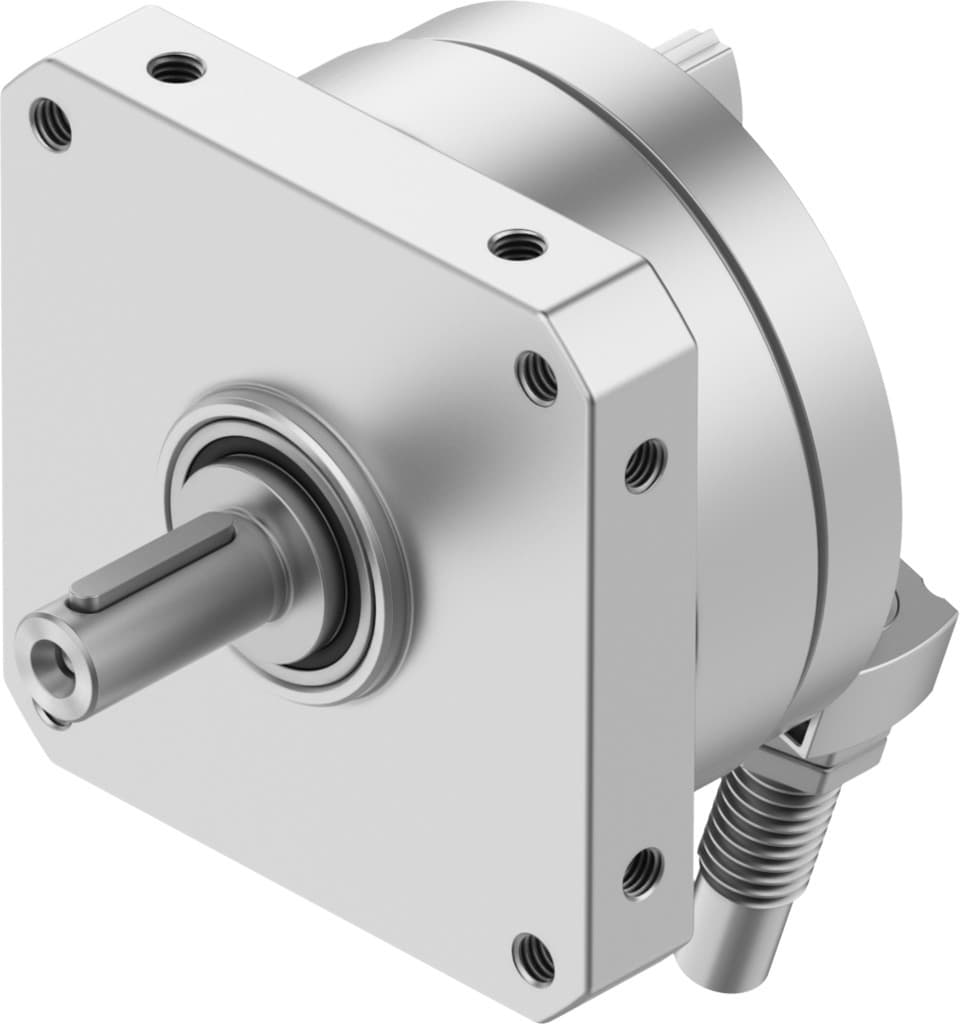

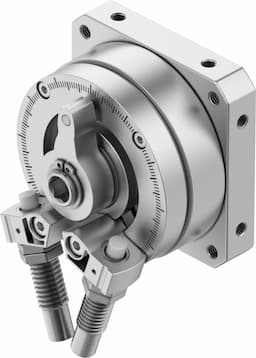

Festo DSM-16-270-CC-A-B Semi-Rotary Drive - High Precision Pneumatic Actuator

Selling Points

1The Festo DSM-16-270-CC-A-B semi-rotary drive offers precise motion control with a swivel angle of 0 to 246 degrees, making it suitable for complex industrial applications.
2Equipped with shock absorbers at both ends, this actuator provides enhanced cushioning and stability, ensuring reliable performance in demanding environments.
3The DSM-16-270-CC-A-B features optional mounting positions and fine adjustments, allowing for easy integration into various systems and configurations.
4Utilizing a proximity switch for position detection, this actuator ensures accurate and reliable operation, reducing the risk of errors in automated processes.
5Designed to operate with compressed air to ISO 8573-1:2010 standards, this actuator is compatible with a wide range of pneumatic systems, ensuring seamless integration into existing setups.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	16	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.8bar 10bar
Max. swivel frequency at 6?bar	1Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	30N
Max. radial force	75N	Theoretical torque at 6 bar	2.5Nm
Permissible mass moment of inertia	0.02kgm2	Product weight	285g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	547576

Specifications may be subject to change without notice
