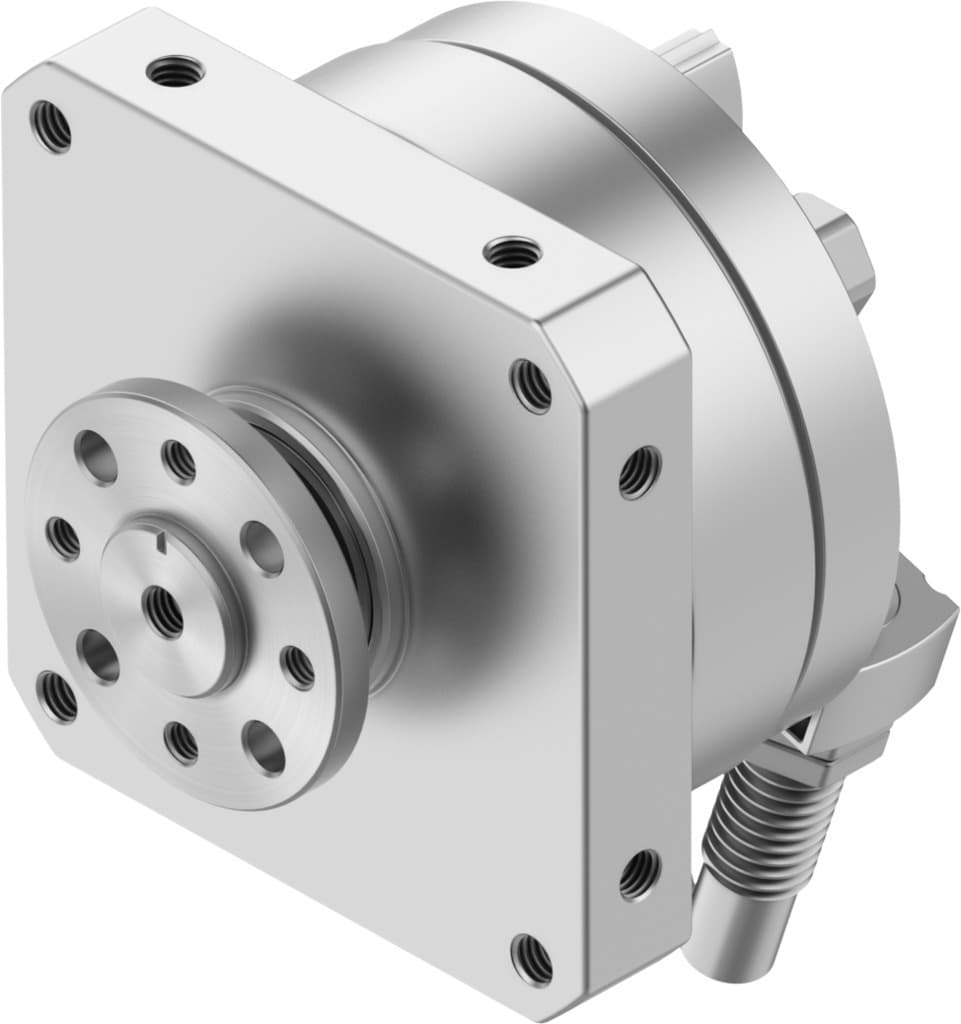

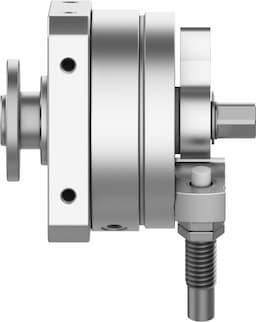

Festo DSM-16-270-CC-FW-A-B Semi-Rotary Drive: Precision and Flexibility

Selling Points

1Precision Swivel Angle: The DSM-16-270-CC-FW-A-B features a swivel angle of 0 to 246 degrees, providing precise control and flexibility in various applications.
2Robust Cushioning: Equipped with self-adjusting shock absorbers at both ends, this semi-rotary drive ensures smooth operation and reduces wear and tear.
3Versatile Mounting Options: Available for mounting via female thread with a pneumatic connection of M5, making it adaptable to different system configurations.
4High Operating Pressure Range: Compatible with operating pressures from 0.18 MPa to 1 MPa (1.8 bar to 10 bar), allowing for efficient operation in various environments.
5Corrosion Resistance: Designed with a corrosion resistance class of CRC 0, ensuring no corrosion stress and meeting LABS (PWIS) conformity standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	16	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.8bar 10bar
Max. swivel frequency at 6?bar	1Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	30N
Max. radial force	75N	Theoretical torque at 6 bar	2.5Nm
Permissible mass moment of inertia	0.02kgm2	Product weight	520g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	547577

Specifications may be subject to change without notice
