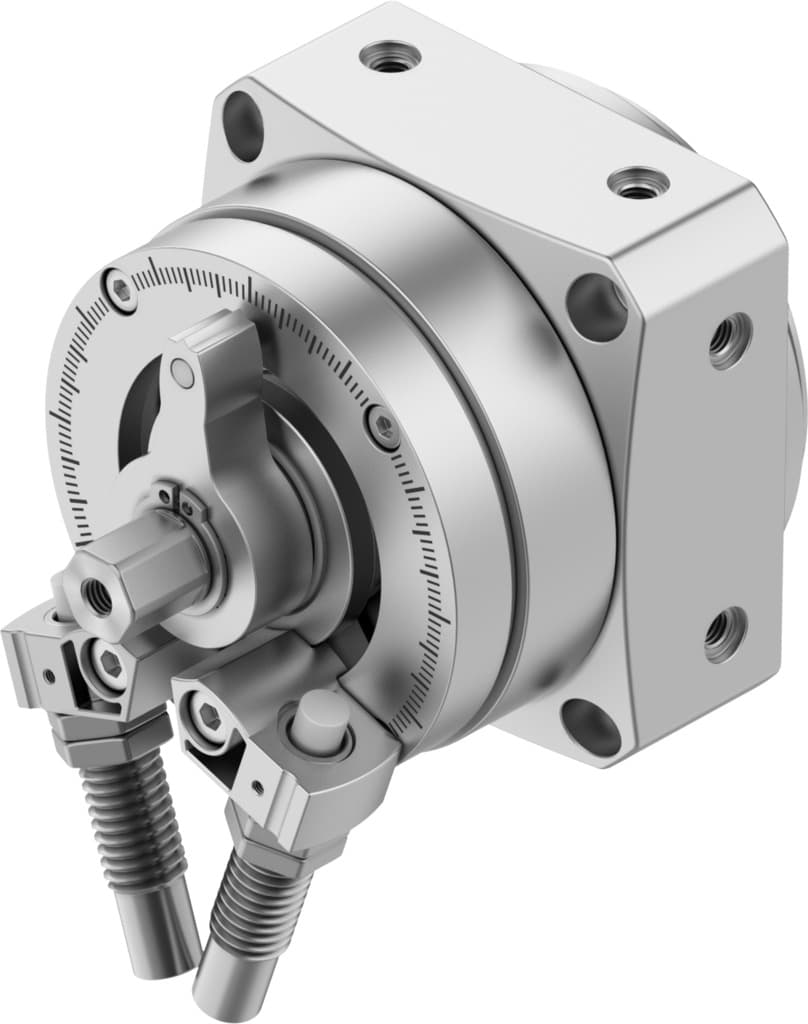

Festo DSM-16-270-CC-HD-A-B: Semi-Rotary Drive for Industrial Automation

Selling Points

1The Festo DSM-16-270-CC-HD-A-B semi-rotary drive offers a cushioning angle of 12 degrees, ensuring smooth operation and minimizing shock during rotation.
2This semi-rotary drive features a swivel angle adjustment range of 0 to 246 degrees, providing flexibility in various industrial applications.
3The DSM-16-270-CC-HD-A-B is designed with shock absorbers at both ends, enhancing stability and reducing wear and tear on the drive.
4With an operating pressure range of 0.18 MPa to 1 MPa (1.8 bar to 10 bar), this drive is suitable for a variety of industrial environments.
5The Festo DSM-16-270-CC-HD-A-B is constructed with high-quality materials, including steel for the drive shaft, nickel-plated for corrosion resistance, and TPE-U(PU) for seals, ensuring durability and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	16	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	3bar 10bar
Max. swivel frequency at 6?bar	1Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	290N
Max. radial force	300N	Theoretical torque at 6 bar	2.5Nm
Permissible mass moment of inertia	0.02kgm2	Product weight	705g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1369123

Specifications may be subject to change without notice
